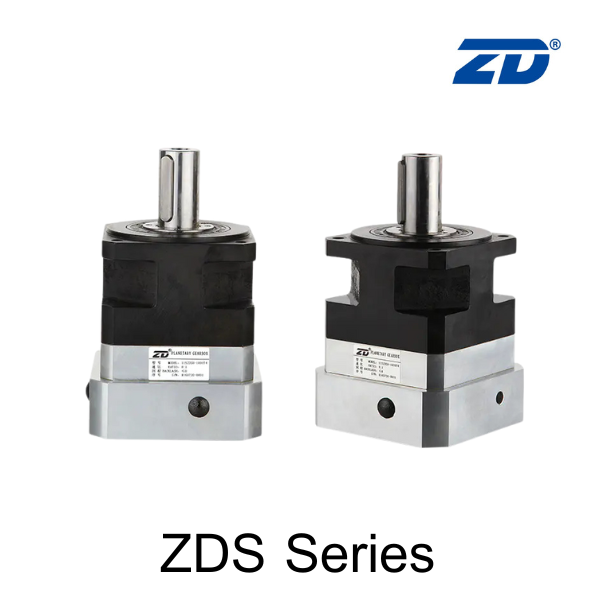

ZDS Series Precision Spur Planetary Gearbox
We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

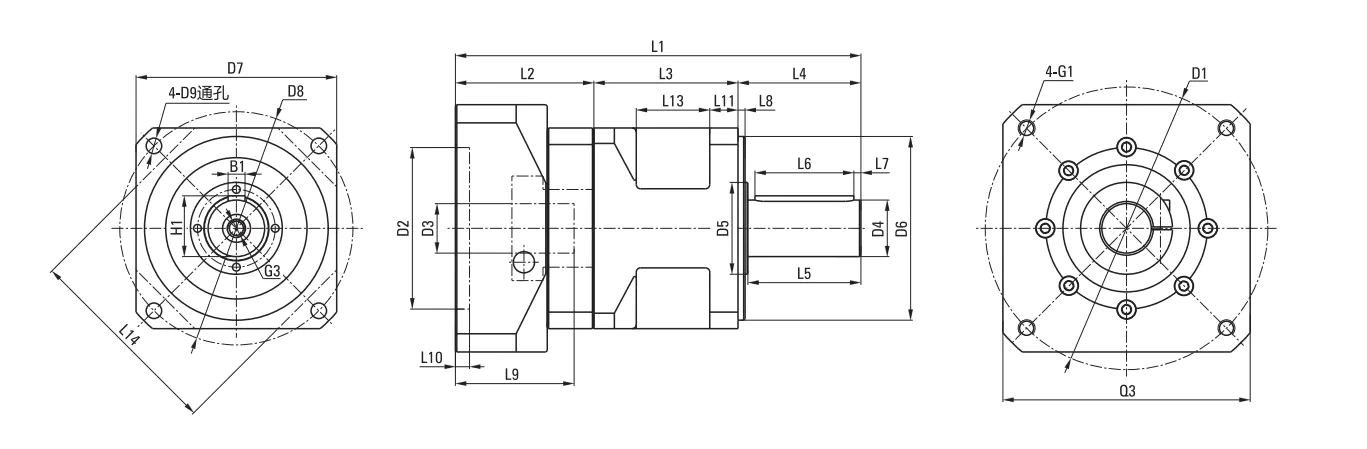

■ Dimensional Drawing

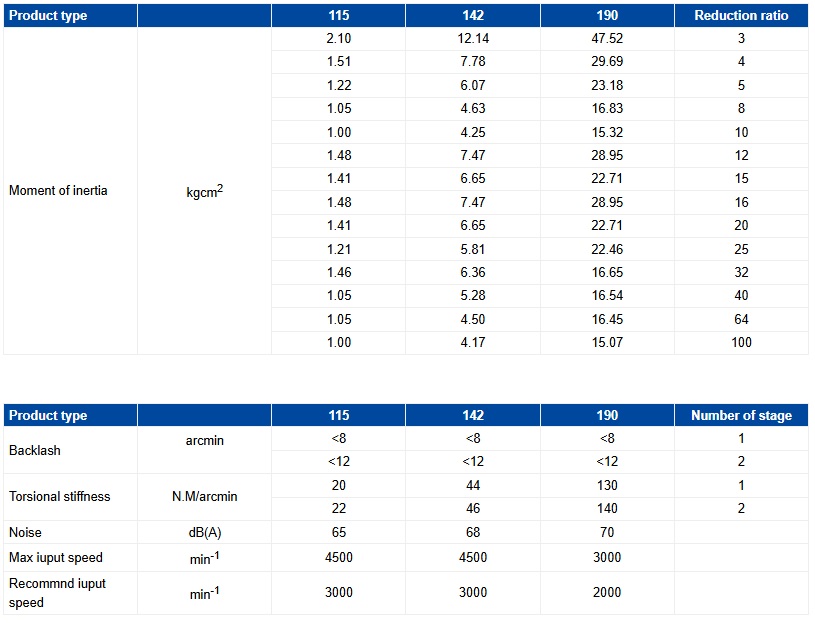

1.The moment of inertia is related with input shaft.
2.Noise test standard pressure level, distance 1m, measured on idle runninq with an input speed of 3000rpm.

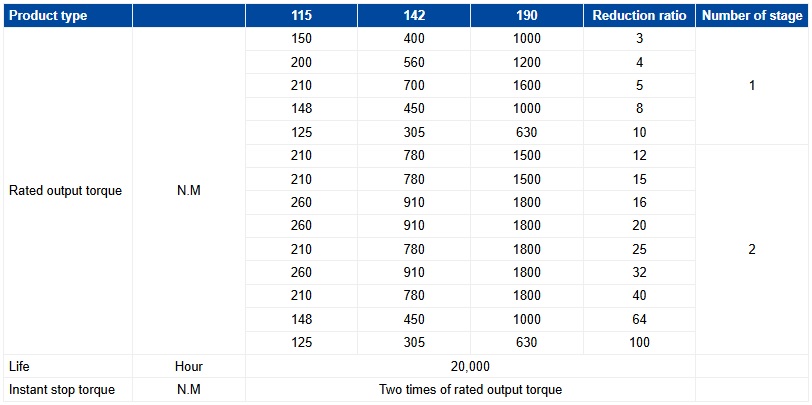

Product Specifications
ZDS SERIES PRECISIOM PLANETARY GEAR MOTOR

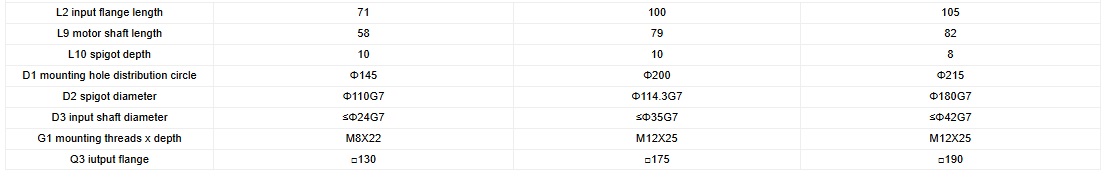

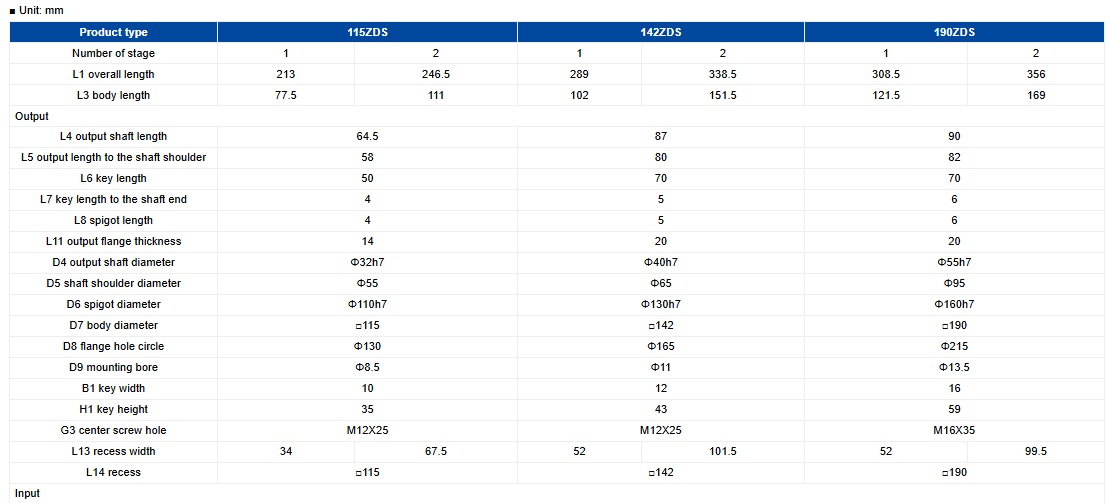

■ Dimensions



Input size made according to motor size.
