ZDR Series Precision Helical Planetary Gearbox

We can provide customized products and project products according
to specific requirements. Please feel free to contact us if you need.

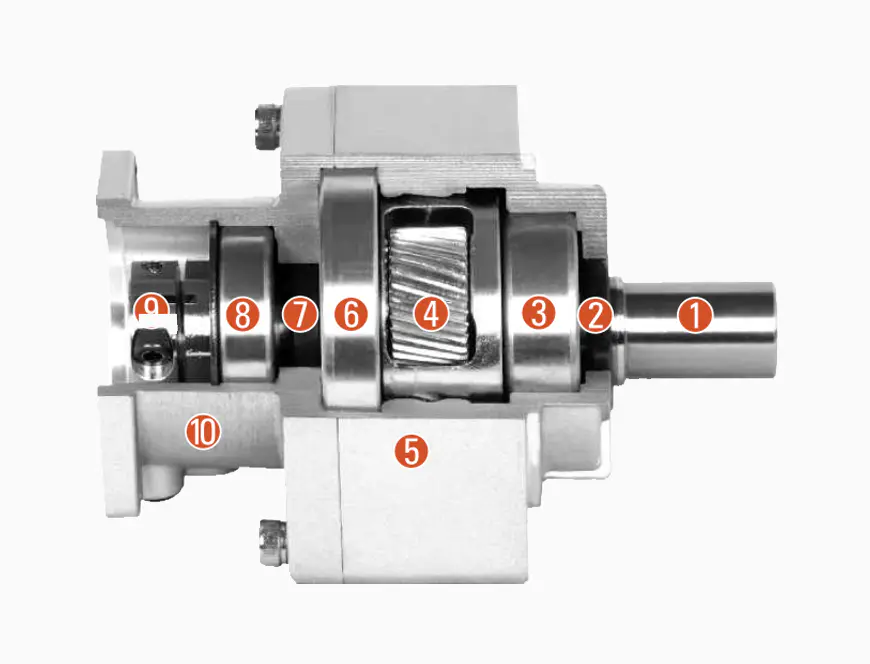

1.Output shaft
2.Seal for the output shaft
3.Bearing for the output shaft
4.Planetary gear
5.Front cover
6.Bearing for the output shaft
7.Seal for the output shaft
8.Bearing for the input shaft
9.Precision clamping system
10.Rear cover

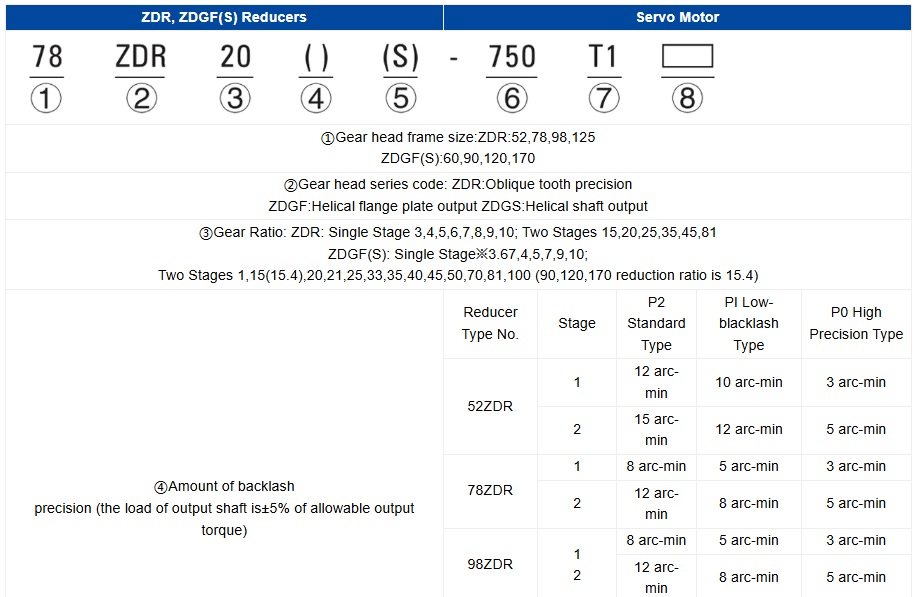

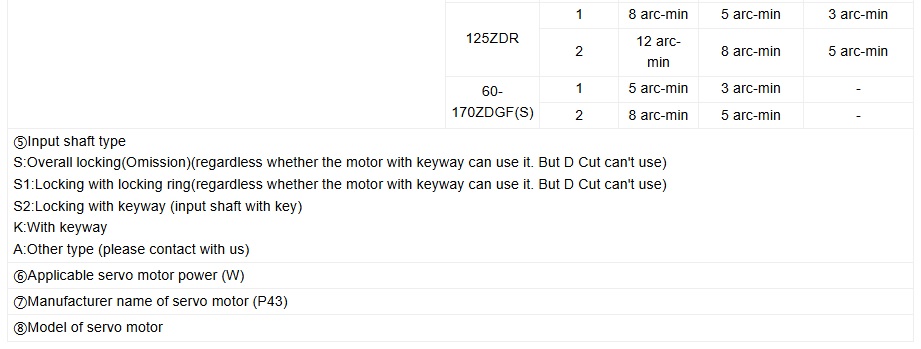

※1：3.67 is 3/11=1/3.666......

Product Specifications

  When Input Speed is 3000rpm

Note1) All corresponding to helical gear

  When Input Speed is 2000rpm

Note1) All corresponding to helical gear

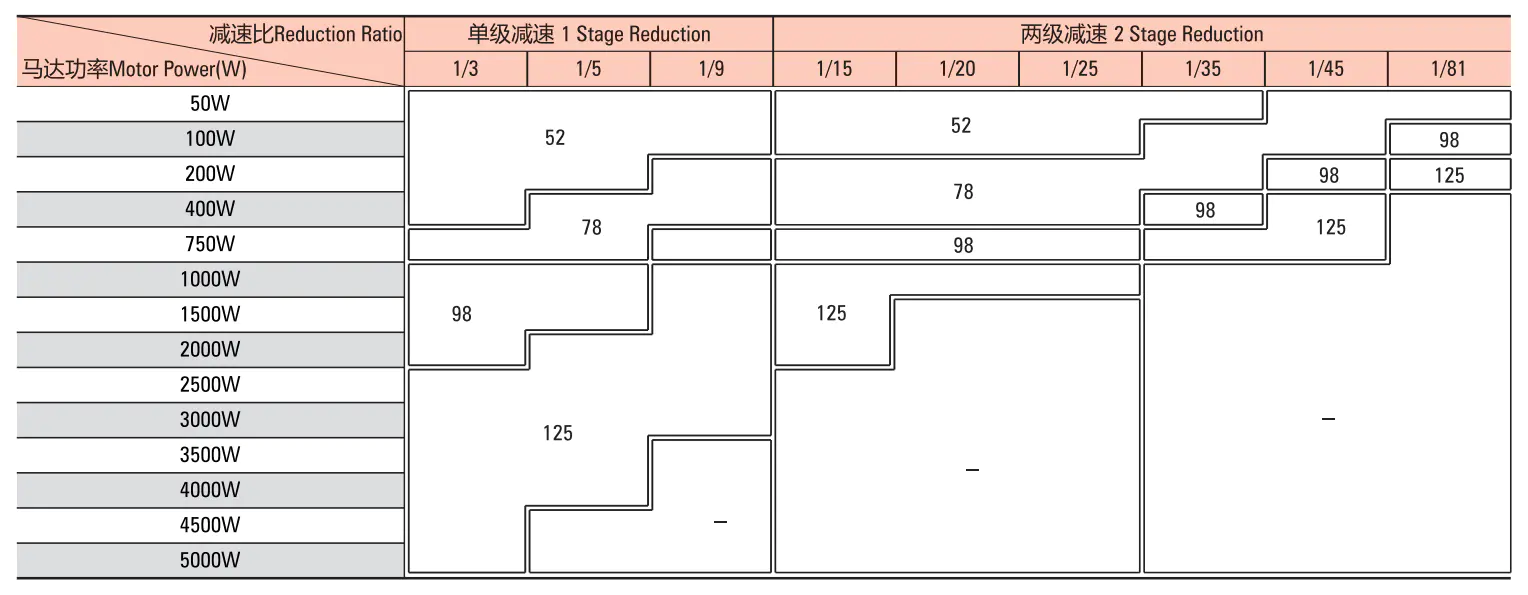

※Torque is limited to the following types:
52: 1/5 reduction(100W)78: 1/81 reduction(50W)
98: 1/3 reduction(1500W),1/45 reduction(200W)
1/81 reduction(100W)
125:1/3 reduction(3500W),1/25 reduction(250W)

Product Specifications

 DIMENSIONAL TABLE FOR ZDR CONCENTRIC SHAFT REDUCER

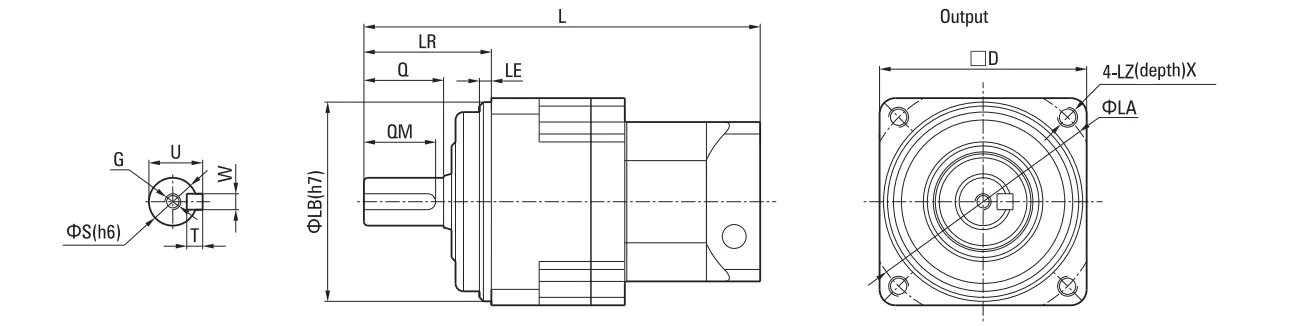

■ Dimensions

■ Dimensional Table

Note1) Please inquire to us if motor model isn't standard (Matching motor list). (The flange dimension may be different if motor assension is different.)
Note2) Rotation of the output shaft is in the same direction as that of motor input.
Note3) All values are within the range corresponding to helical gear.
