ZB Series Precision Helical Planetary Gearbox
We can provide customized products and project products according
to specific requirements. Please feel free to contact us if you need.

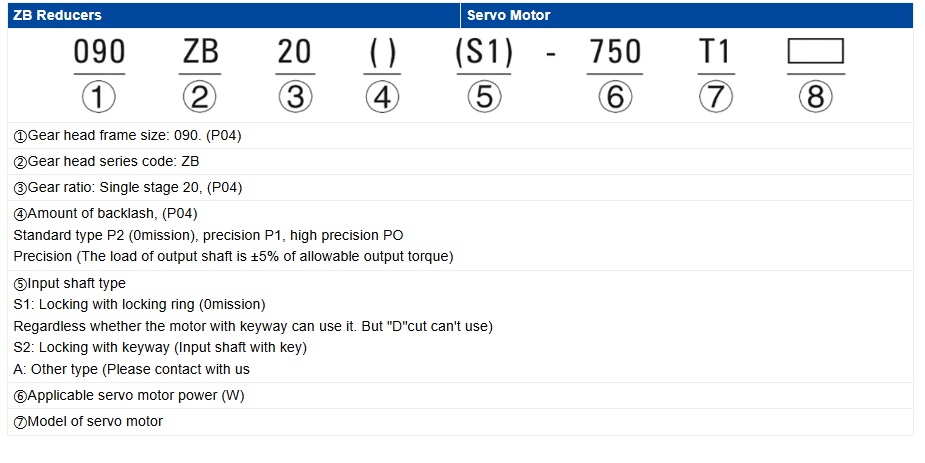

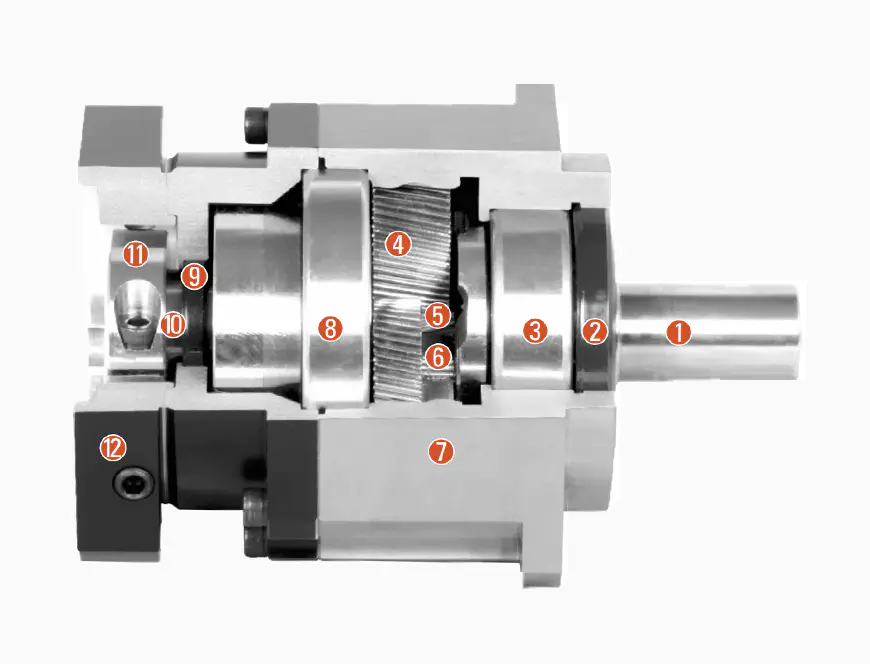

1.Output shaft
2.Oil seal
3.Output shaft front bearing
4.Planetary gear
5.Solar wheel
6.Front cover
7.Output shaft rear bearing
8.Adjusting nut
9.Double row angular contact bearing
10.Output bevel gear
11.Right angle box
12.Input bevel gear
13.Lock nut
14.Input coupling
15.Locking device
16.Rear cover
17.Rear cover gasket
DIMENSIONS
SINGLE SEGMENT, REDUCTION RATIO i=3~10

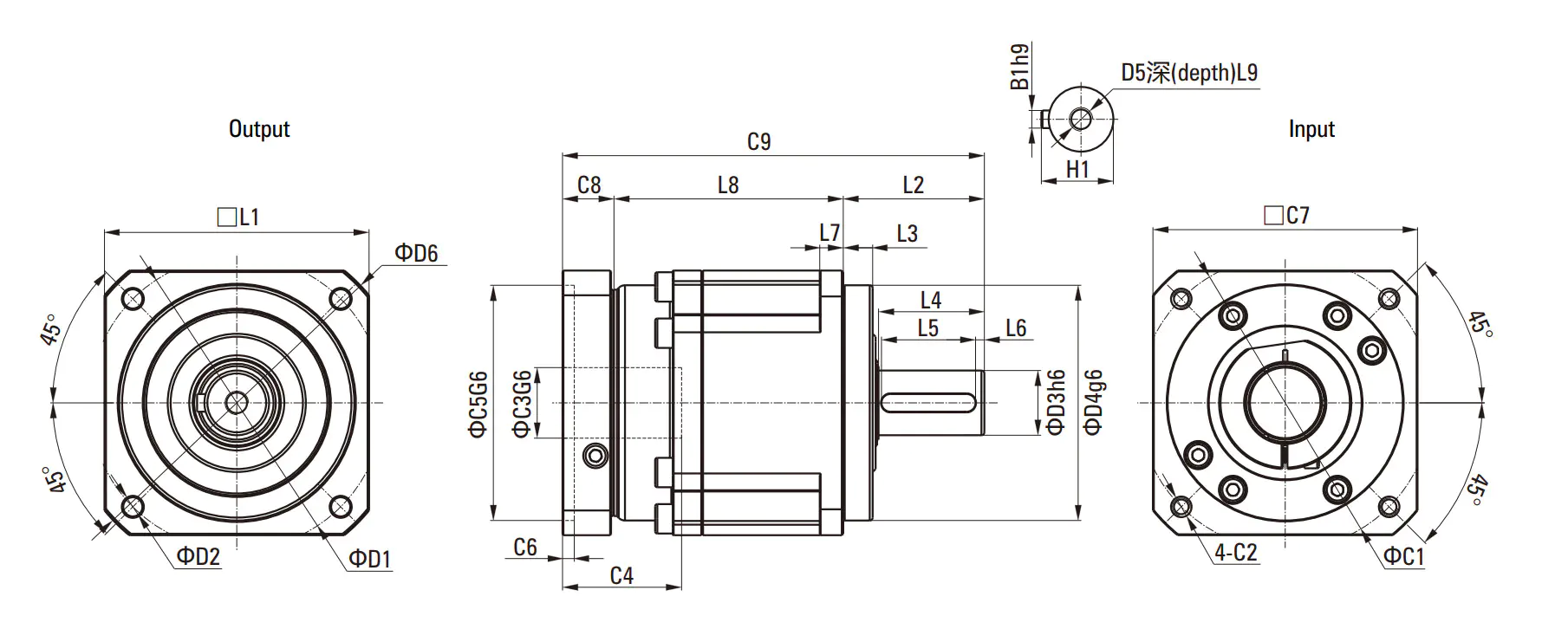

■ Dimensional Drawing
DOUBLR, REDUCTION RATIO i=15~100

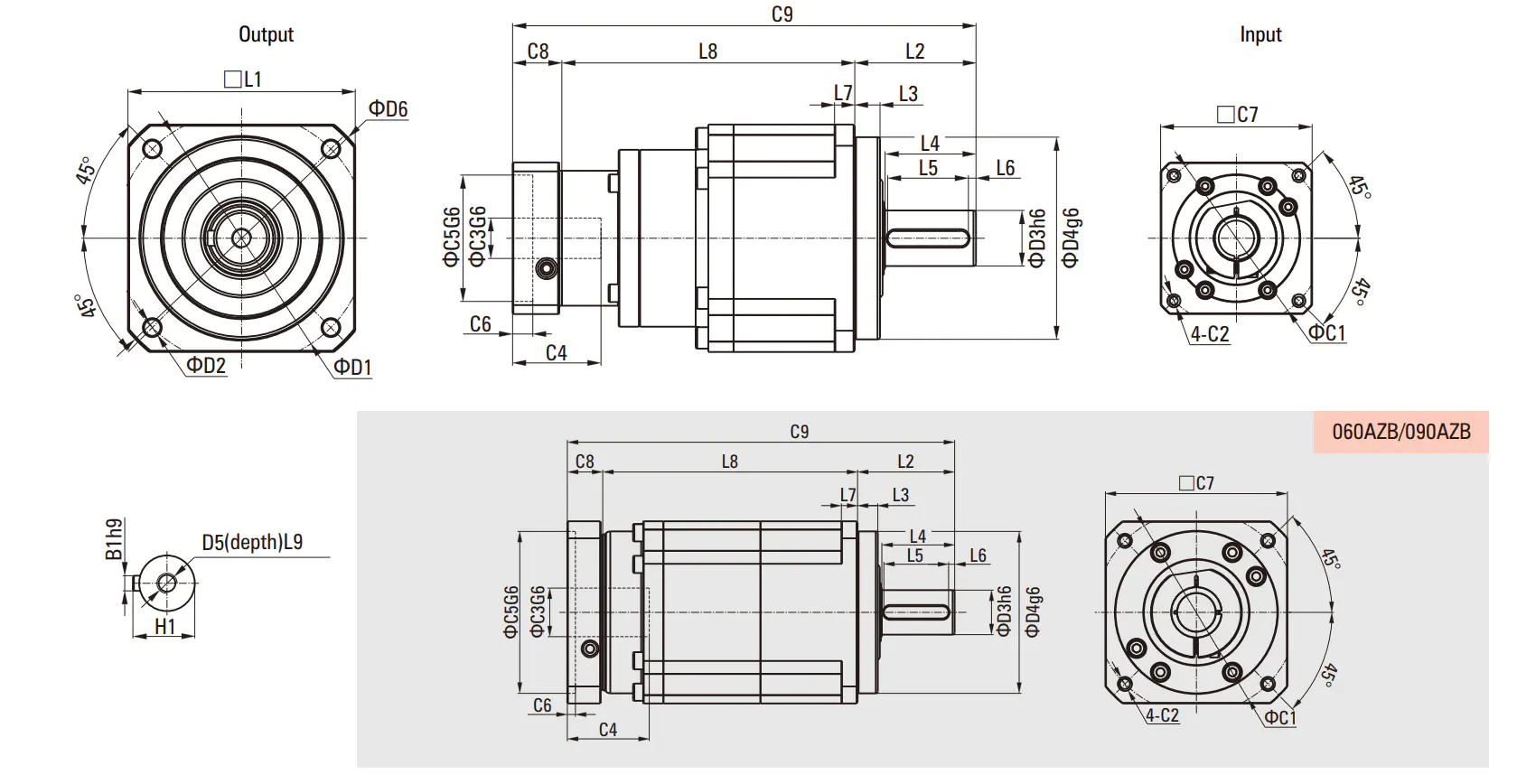

■ Dimensional Drawing

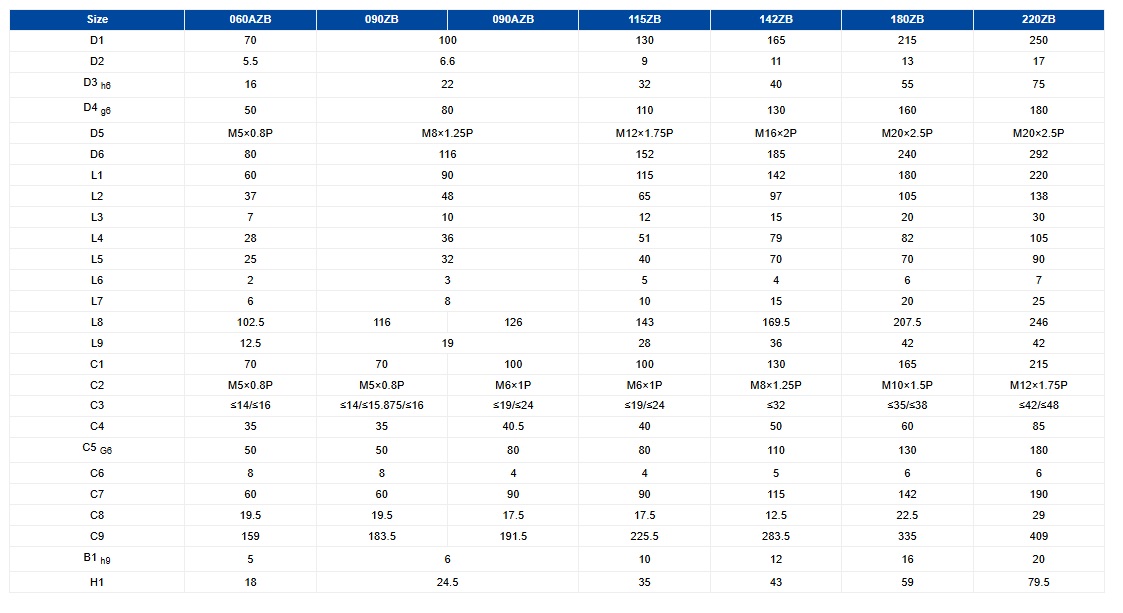

■ Dimensional Table
* 060ZB 5,10 reduction ratio is available with C3≤16.
