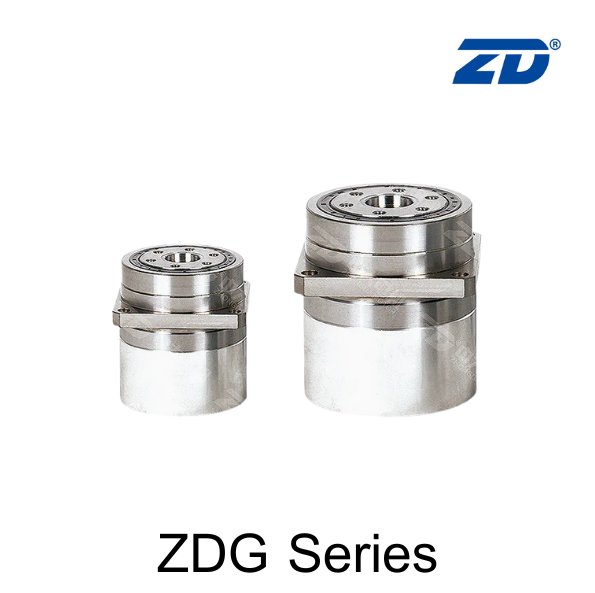

ZDG Series Precision Helical Planetary Gearbox
We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

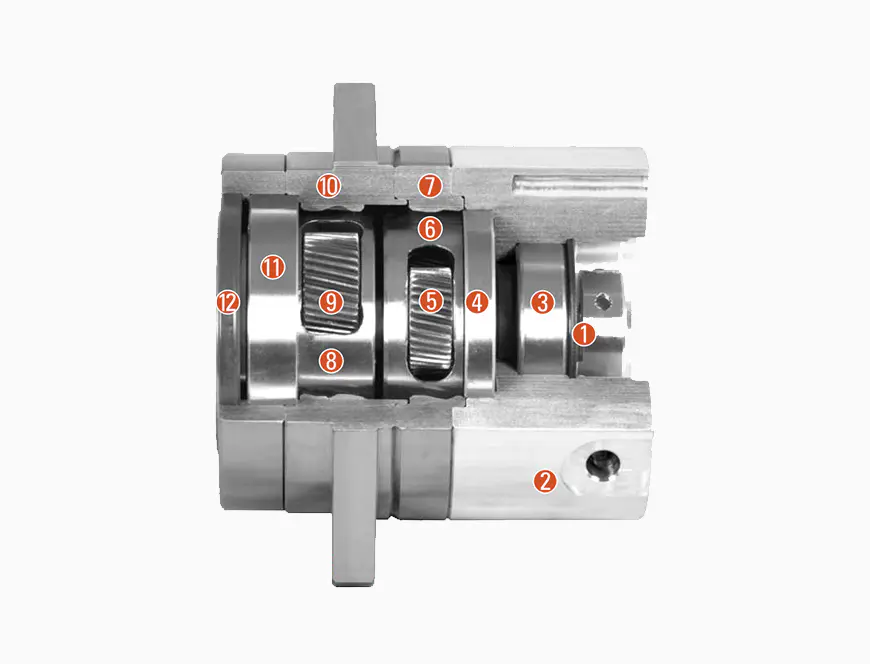

1.Precision machine clip system
2.Adapter motor flange
3.Sun wheel bearing
4.Planetary frame bearing
5.Input planetary wheel
6.Planetary frame
7.Input internal gear
8.Output planetary frame
9.Output planetary wheel
10.Output internal gear
11.Cross roller bearing
12.Output oil seal

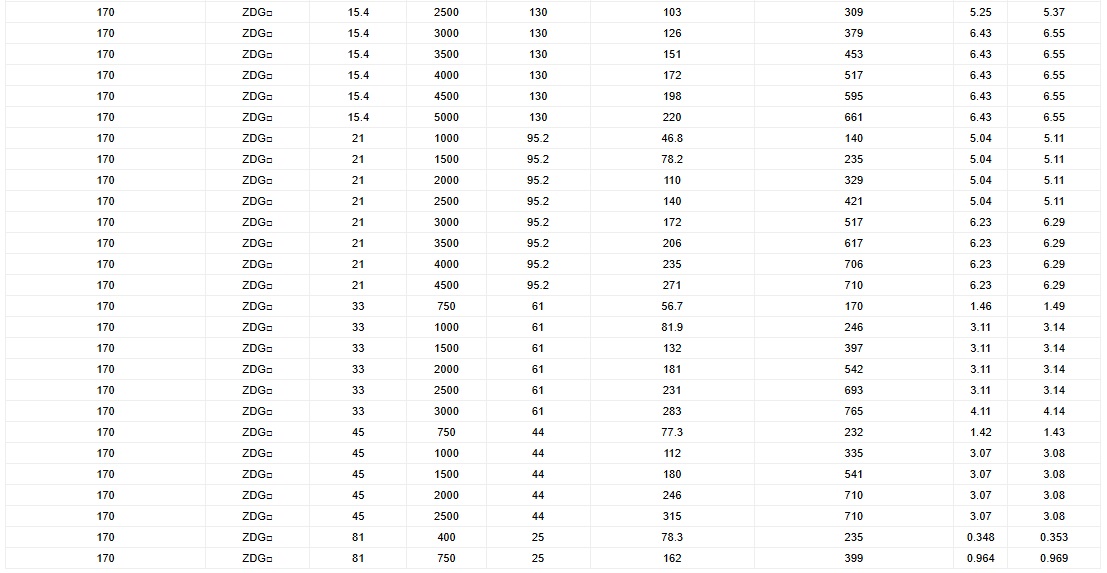

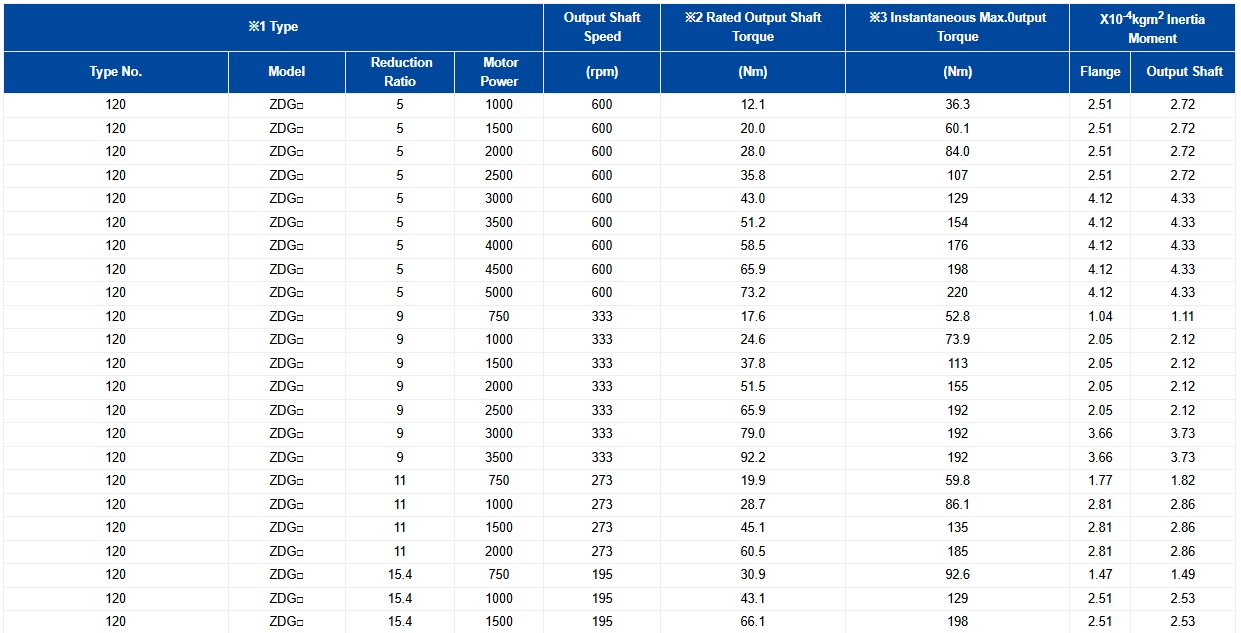

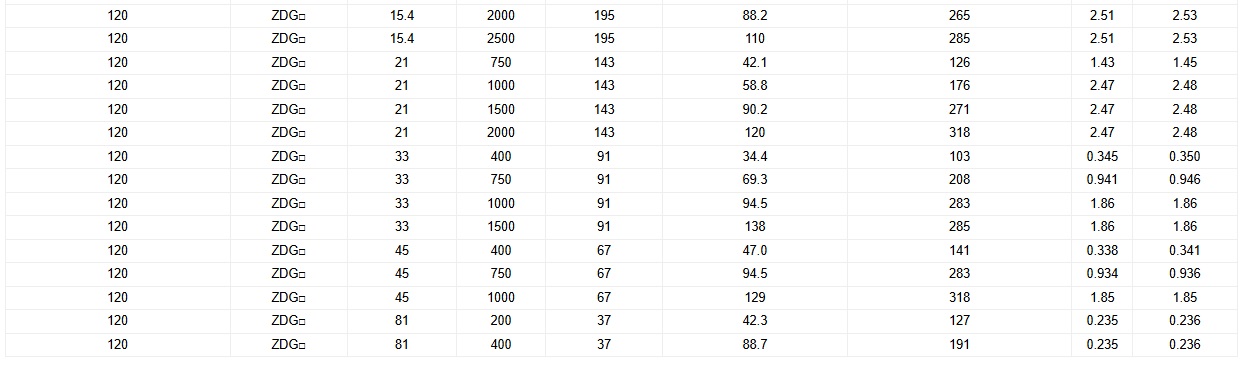

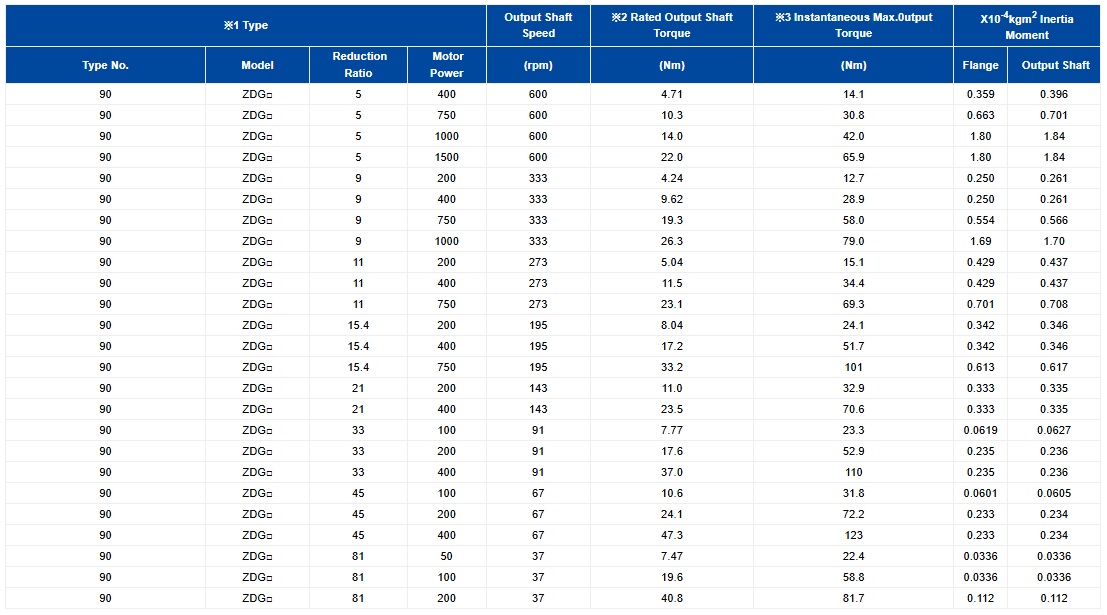

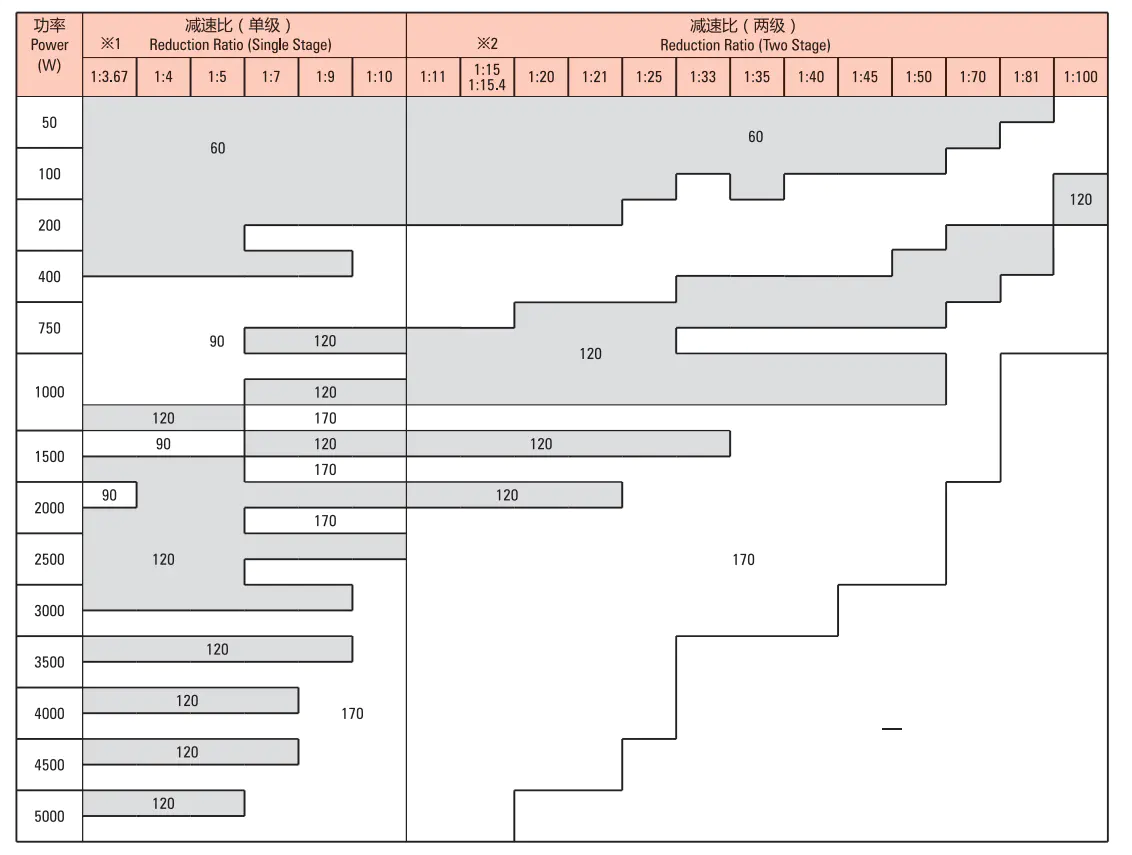

OUTPUT TORQUE AND MOMENT OF INERTIA
60•90
■ When Input Speed Is 3,000rpm (60)
■ When Input Speed Is 3,000rpm(90)
120
■ When Input Speed Is 3,000rpm (120)
170
■ When Input Speed Is 2,000rpm (170)

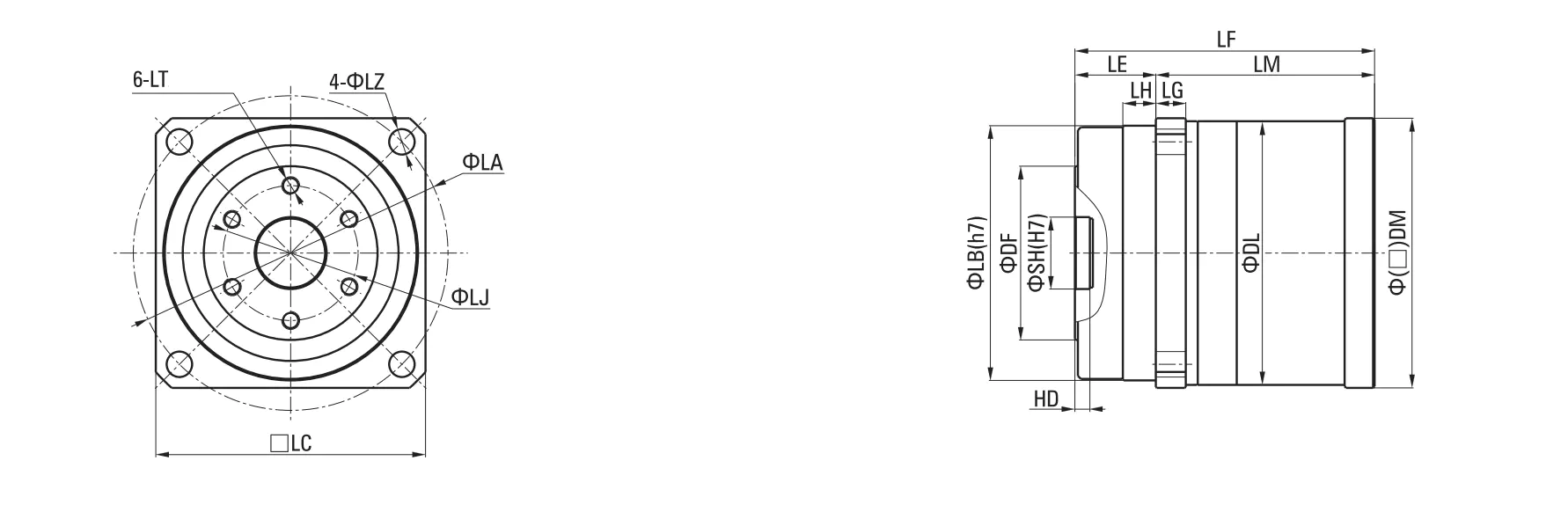

DIMENSION CHART
■ Reducer Type: 60ZDGF(S) /■ Reducer Type: 90ZDGF(S) /■ Reducer Type: 120ZDGF(S)

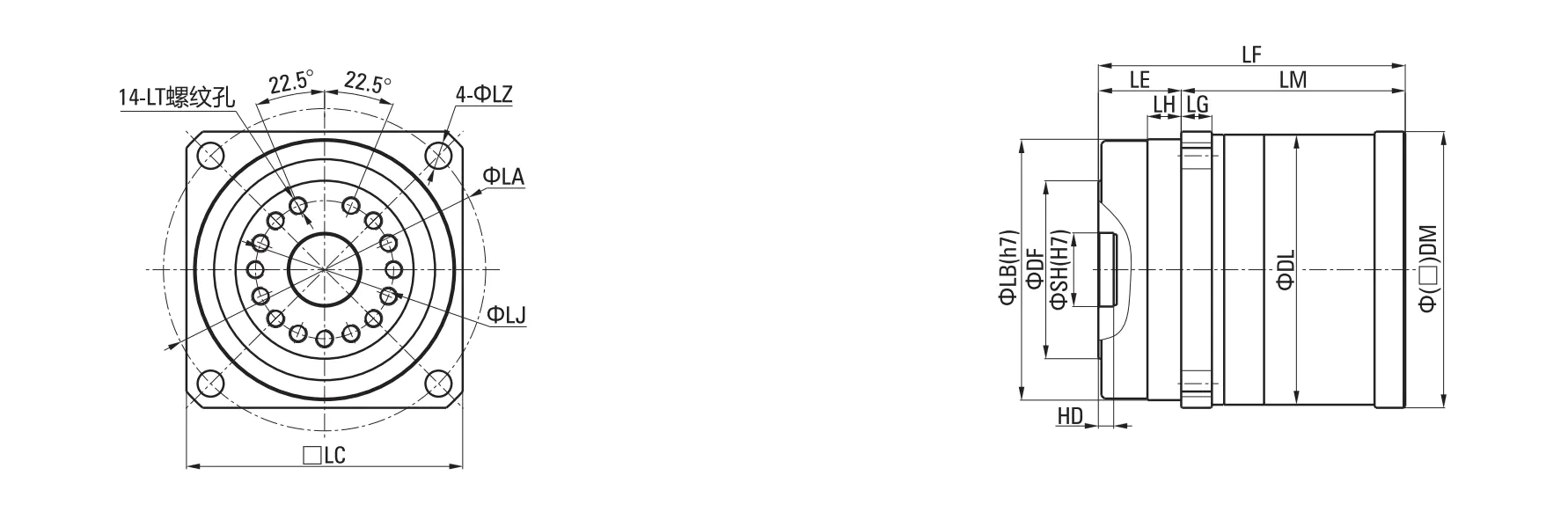

●Flange Type (ZDGF)

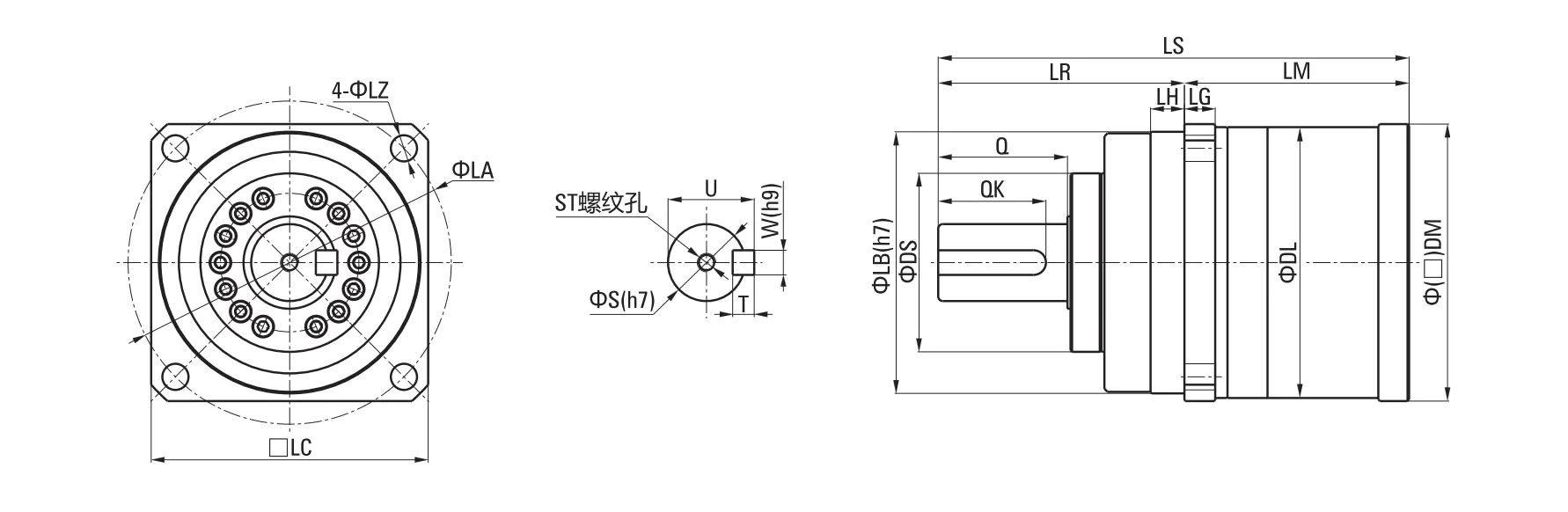

●Extended Shaft Output (ZDGS)
■ Reducer Type: 170ZDGF(S)

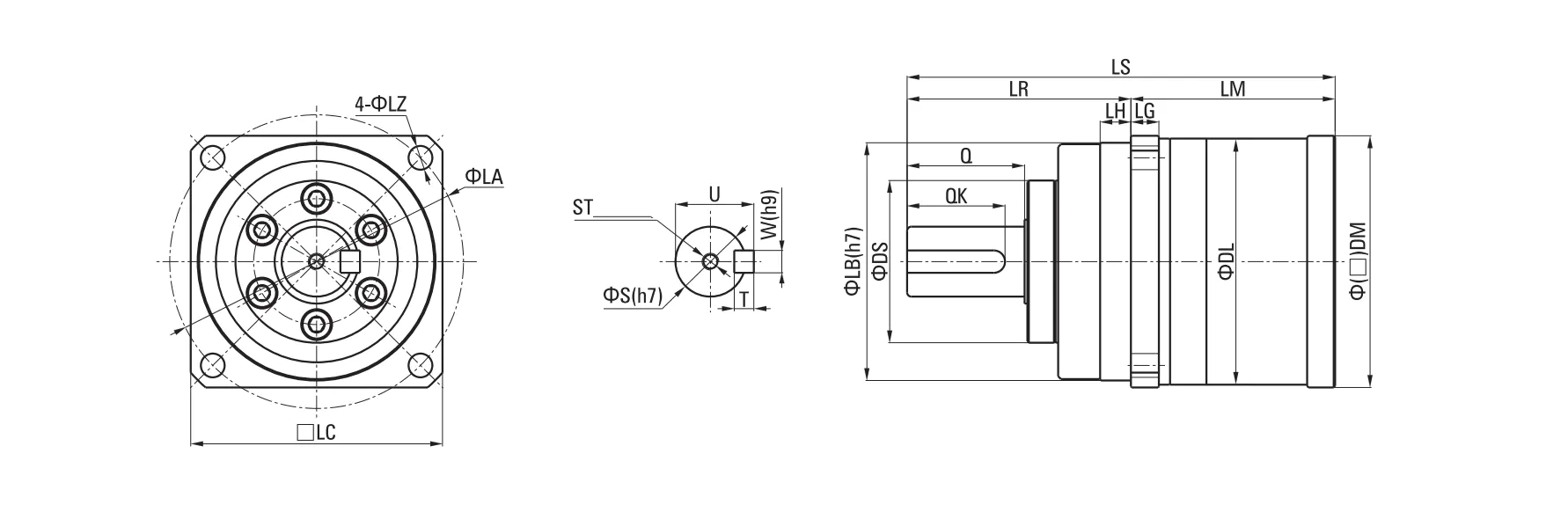

●Flange Type (ZDGF)
●Extended Shaft Output (ZDGS)

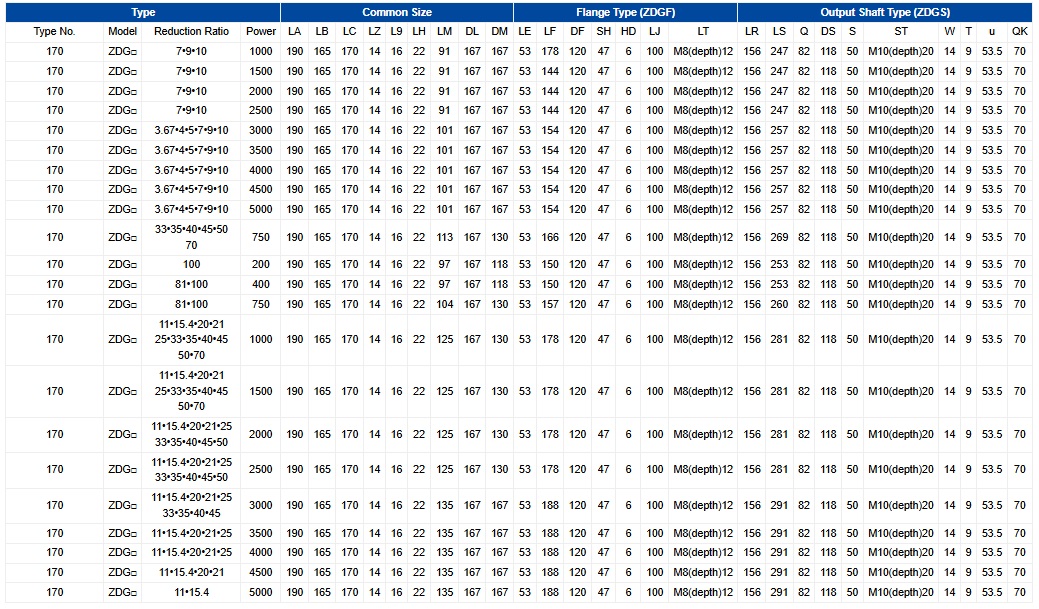

■ Dimensional Table
