HD Series Precision Helical Planetary Gearbox
We can provide customized products and project products according to specific requirements.
Please feel free to contact us if you need.

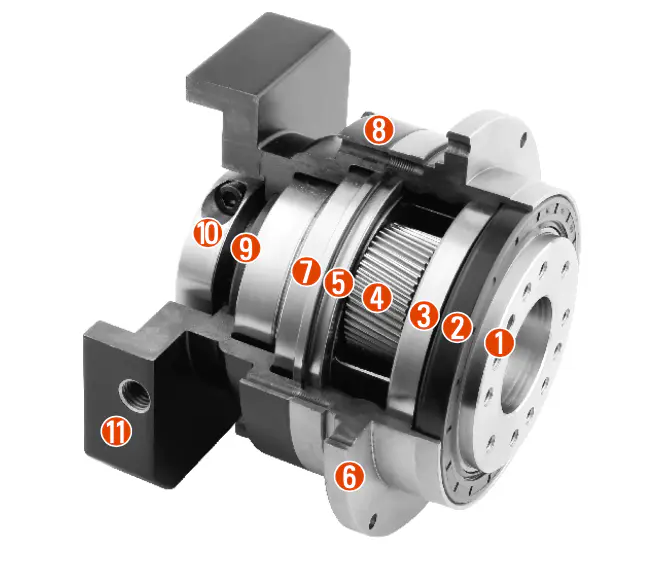

1.Output shaft
2.Oil seal
3.Output shaft front bearing
4.Planetary gear
5.Flange inner tooth
6.Output shaft rear bearing
7.Lock nut
8.Rear cover
9.Solar wheel
10.Locking device
11.Rear cover gasket
Product Specifications

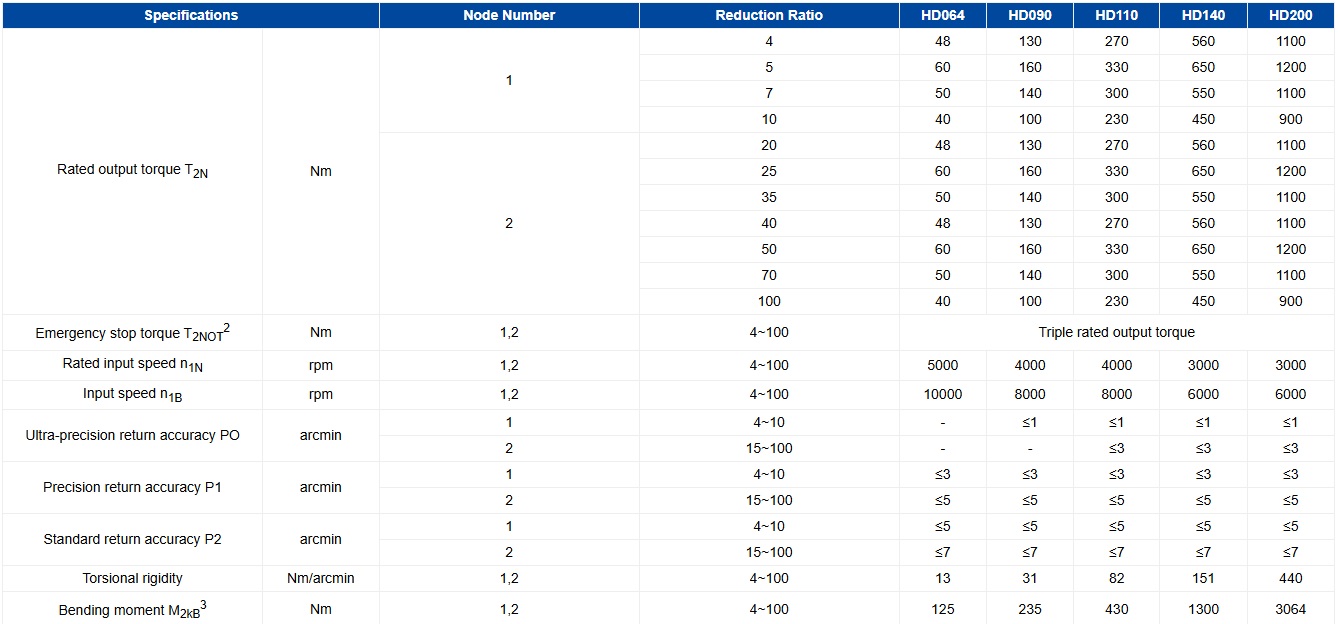

Reducer Performance Data

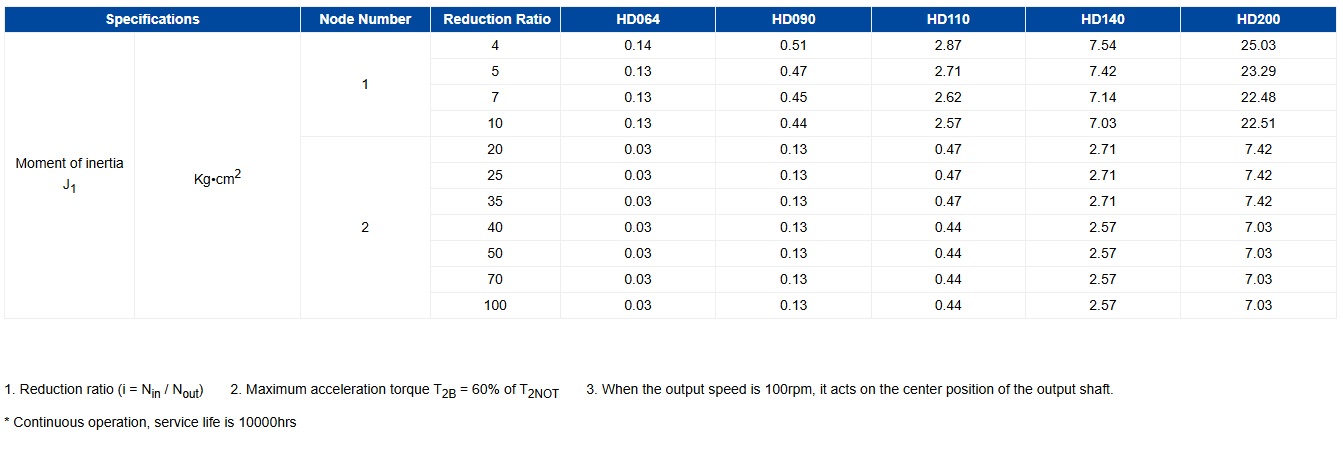

Moment Of Inertia Of The Reducer
Dimensions
SINGLE SEGMENT, REDUCTION RATIOi=4~1C

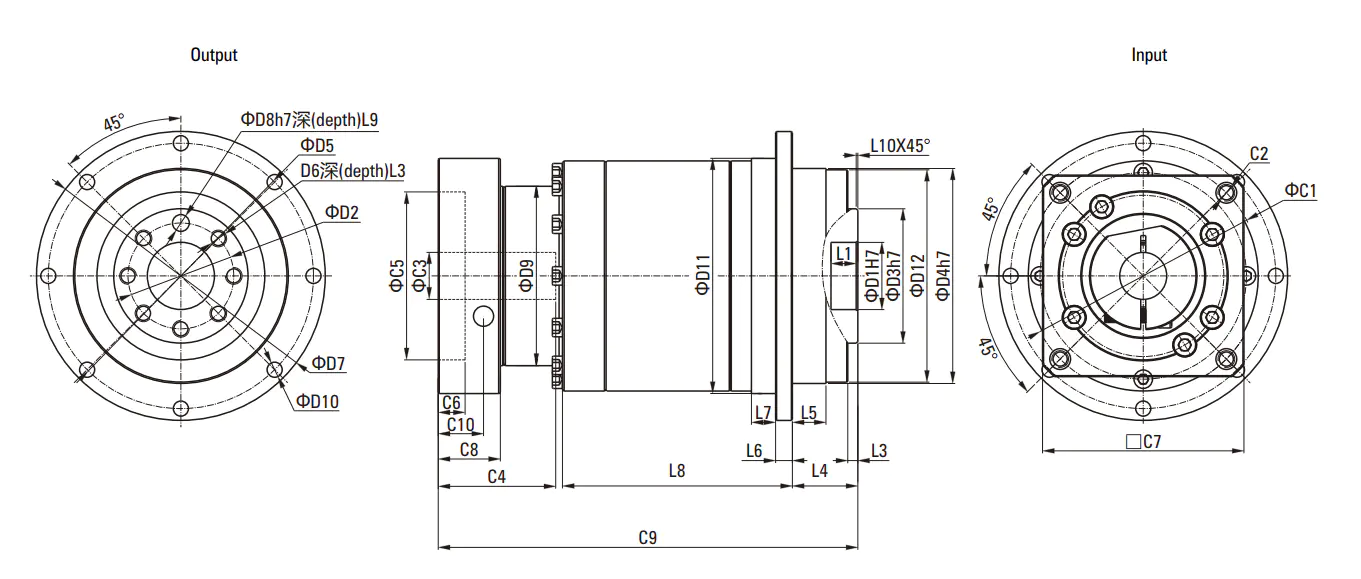

■ Dimensional Drawing
DOUBLE, REDUCTION RATIOi=20~100
■ Dimensional Drawing

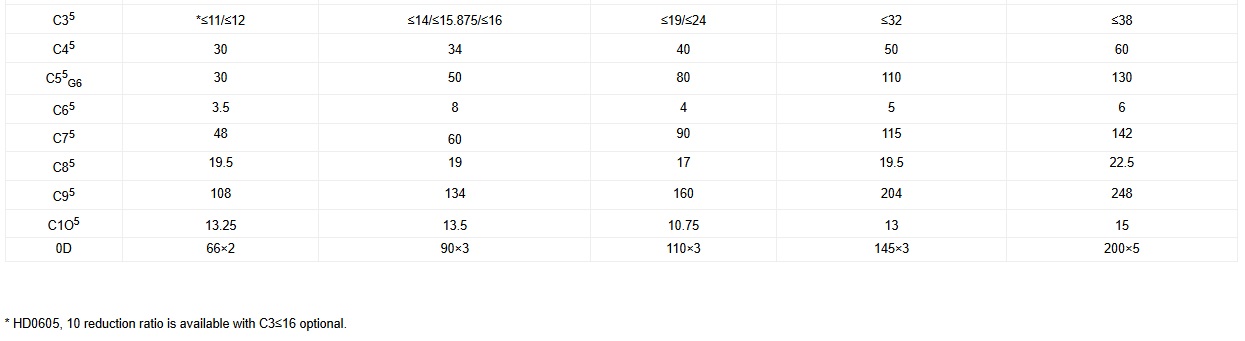

■ Dimensional Table
