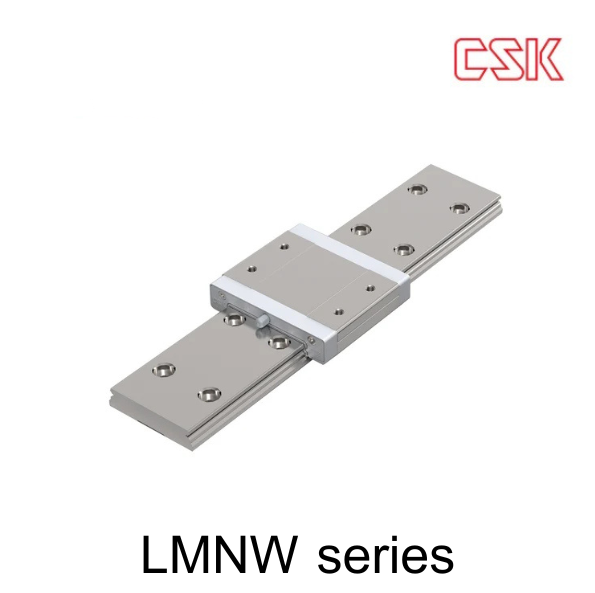

The LMNW series miniature linear guide uses a two-row steel ball and a Goethe-type four-point contact design, which can bear loads in all directions, making it highly rigid and precise. It is suitable for small spaces or parts that require small size and light weight, especially for small automation equipment. It has a steel ball retainer design and can be interchangeable with precision allowed. The metal parts of the guide rail, slider, steel ball, and accessories are made of stainless steel, which has excellent rust prevention properties. (Note: LMNW is the wider vison of LMN).
Product Features
√ High rigidity, high precision
√ Low friction, smooth running
√ High positioning accuracy and √good reproducibility
√ Small size and light weight
√ Interchangeability
√ Conform to international standards

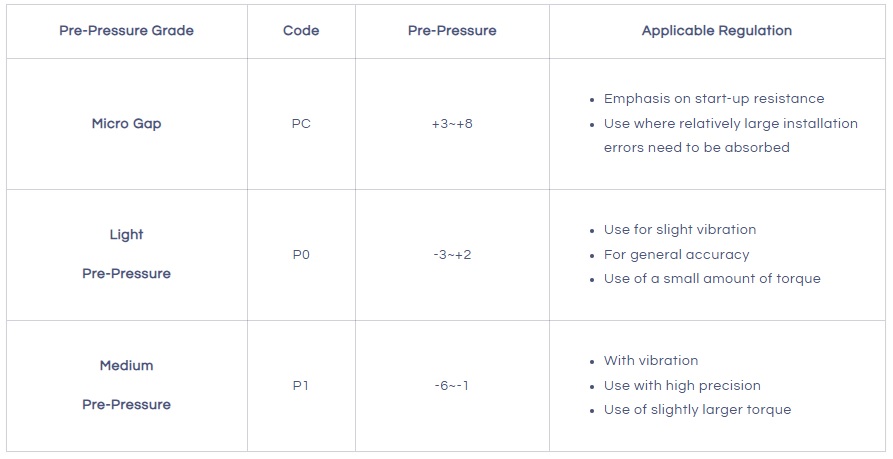

Pre-Pressure Test

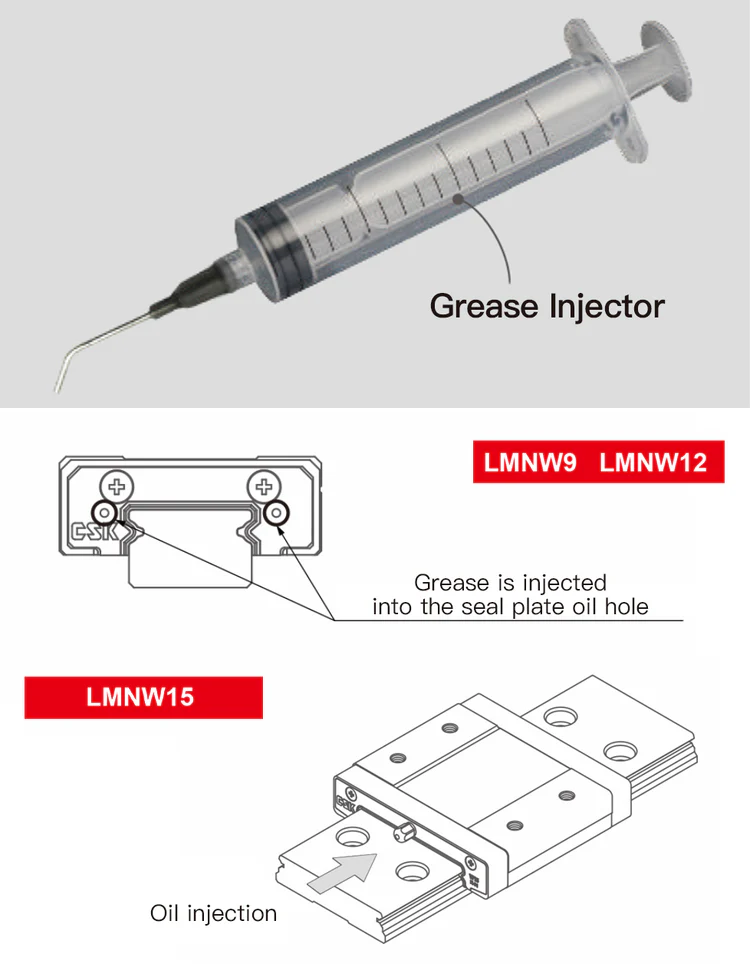

| Lubrication Lubrication Location： LMNW series miniature linear guide has permanent long life grease injected with high grade synthetic oil as base oil at the factory, which can be used directly. According to the use of the situation, the supplemental lubrication can be done at the right time. CSK can provide special oil injector, oil injection method refer to the right figure. Oil Injector:
|  |

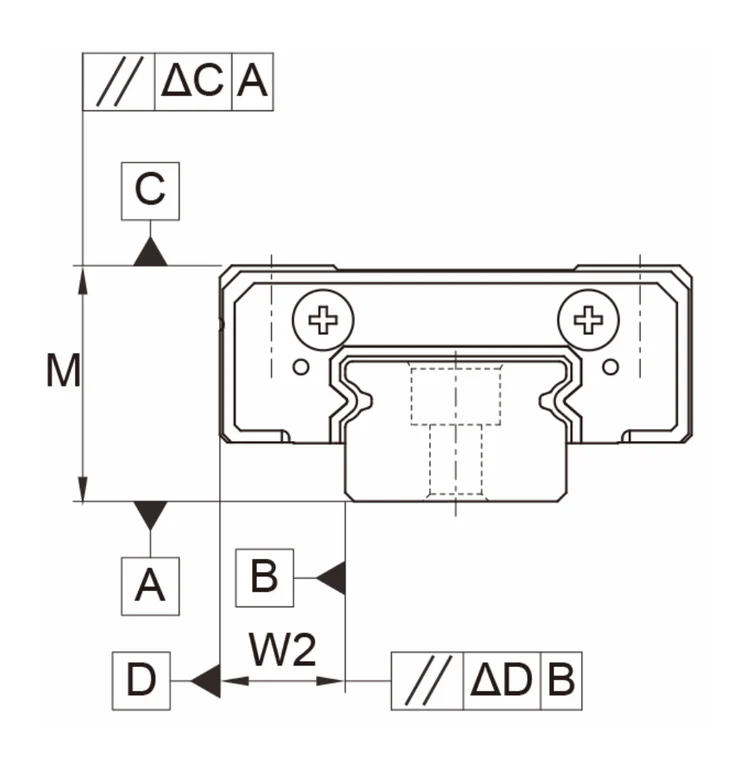

 | Accuracy Grade The precision of LMN series miniature linear guide is divided into three grades: Normal Grade (N), High Grade (H) and Precision Grade (P), which customers can choose according to the demand of equipment precision. |
