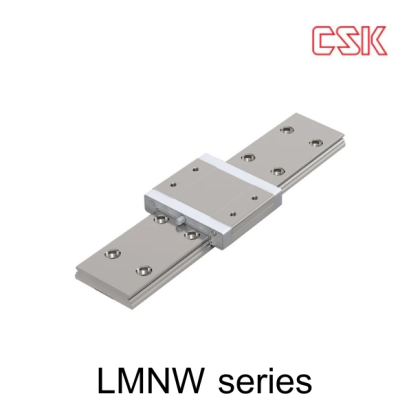

The LMNW series miniature linear guide uses a two-row steel ball and a Goethe-type four-point contact design, which can bear loads in all directions, making it highly rigid and precise. It is suitable for small spaces or parts that require small size and light weight, especially for small automation equipment. It has a steel ball retainer design and can be interchangeable with precision allowed. The metal parts of the guide rail, slider, steel ball, and accessories are made of stainless steel, which has excellent rust prevention properties. (Note: LMNW is the wider vison of LMN).

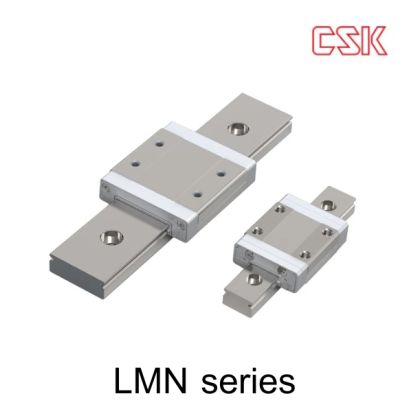

The LMN series miniature linear guide uses a two-row steel ball and a Goethe-type four-point contact design, which can bear loads in all directions, making it highly rigid and precise. It is suitable for small spaces or parts that require small size and light weight, especially for small automation equipment. It has a steel ball retainer design and can be interchangeable with precision allowed. The metal parts of the guide rail, slider, steel ball, and accessories are made of stainless steel, which has excellent rust prevention properties.

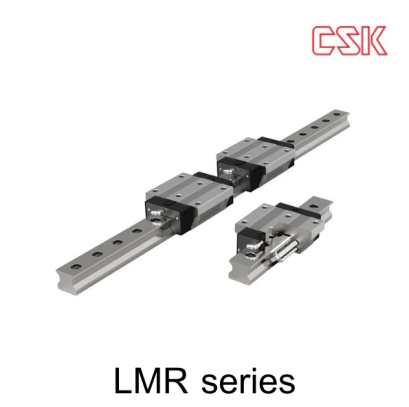

The LMR series linear guide uses cylindrical rolling elements instead of traditional steel ball rolling elements, changing from point contact to line contact, greatly improving the load capacity. When bearing high loads, the elastic deformation of the cylindrical rolling element is smaller. The four cylindrical columns are designed with a 45-degree contact angle DB, providing high rigidity and load-bearing performance. It can also withstand equal loads in radial, anti-radial, and left-right lateral directions.

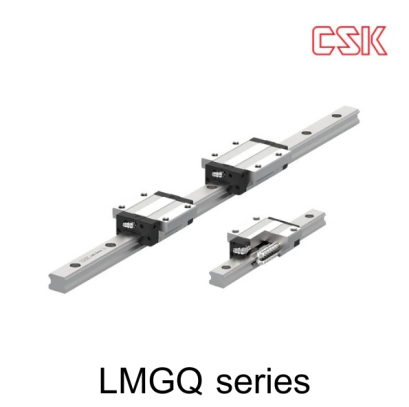

The LMGQ series linear guide is a high-performance linear guide developed based on the design foundation of the LMG series linear guide. It has high rigidity and load-bearing performance and can withstand equal loads in radial, anti-radial, and left-right lateral directions. Its automatic self-aligning feature can absorb assembly errors during equipment assembly.

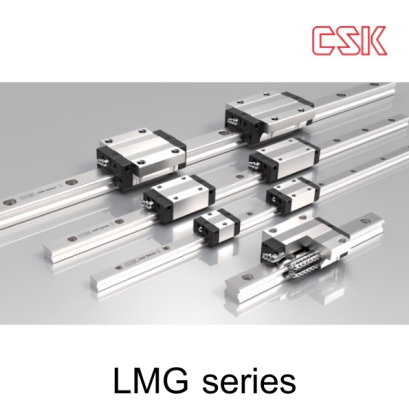

The LMG series linear guide has a 4-row steel ball and 45-degree arc contact angle design for high rigidity and load-bearing performance. It can handle equal loads in all and has an automatic self-aligning feature to absorb assembly errors. The steel ball's rolling reflux motion provides low friction resistance, meeting the high precision, reliability, and smooth linear motion requirements of precision equipment.
