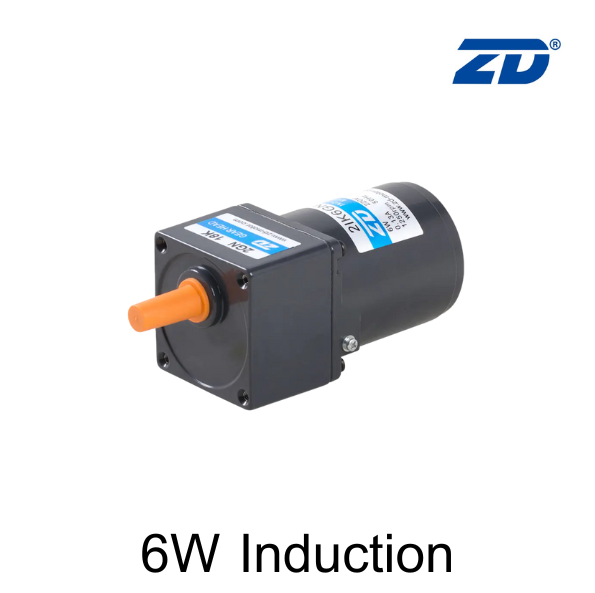

6W Induction AC Motor/Gear Motor
We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.
Product Description

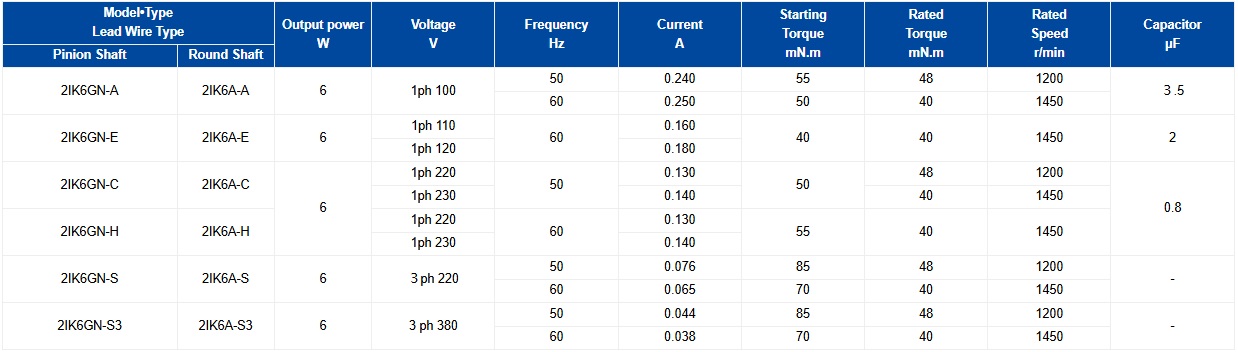

Specs Continuous Rating
●When the motor is approved under various safety standards，the model name on the nameplate is the approved model name.
●Note:"-A"it means the voltage 110v，the assembly capacitor vaule it is according the label.
Тype
Gear Motor-Torque Table & Allowable Torque Unit：Upside(N.m)/ Downside(kgf.cm)
Product Description

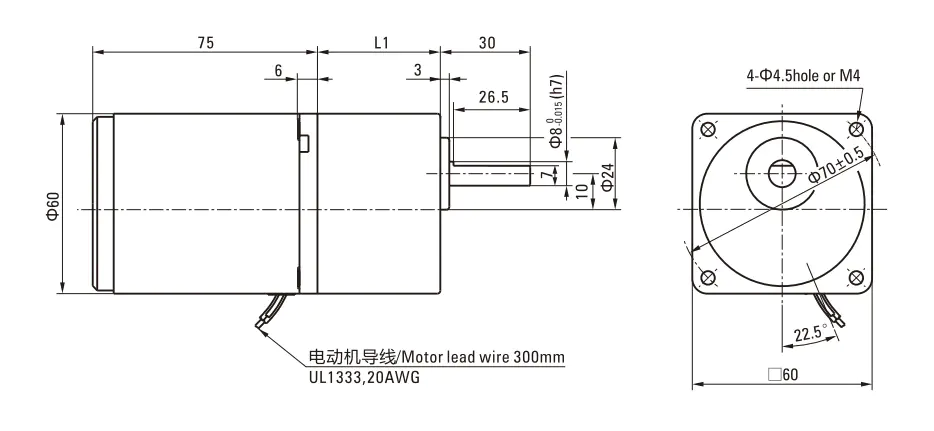

Dimensions(Unit mm)
Mounting screws are included with gearhead.
●Lead Wiring Type
Weight：Motor：0.75kg Gearhead：0.4kg

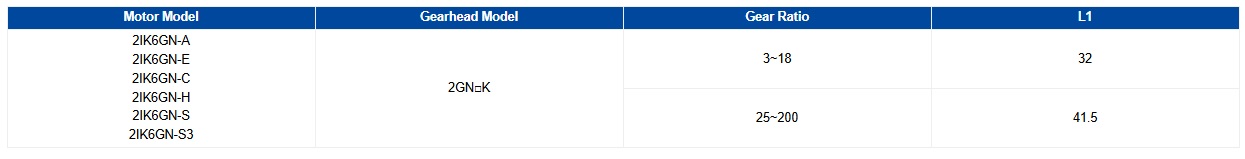

Enter the gear ratio in the box(□)within the model name

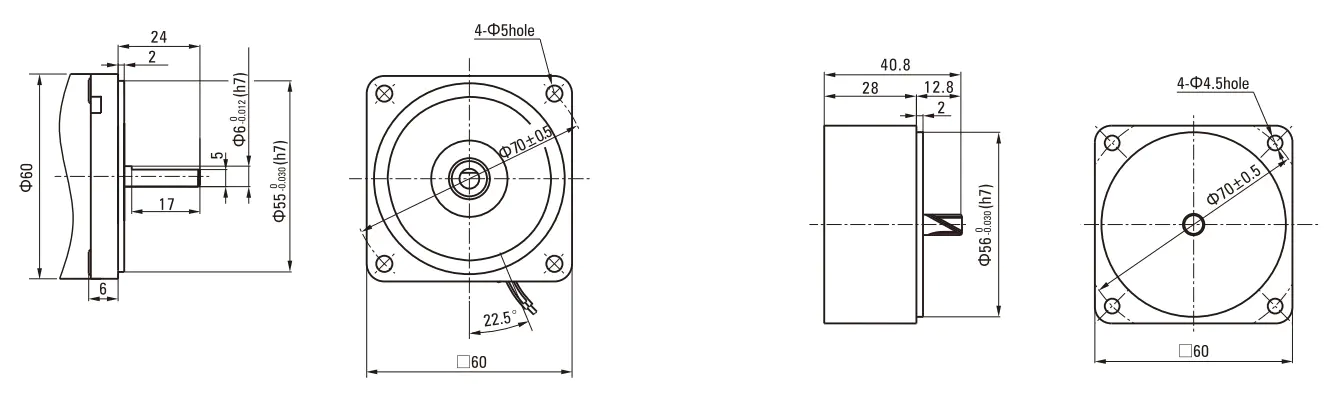

●Shaft Section Of Round Shaft Type
Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.
●Decimal Gearhead
Can be connected to GN pinion shaft type
2GN10XK
Weight：0.2kg
