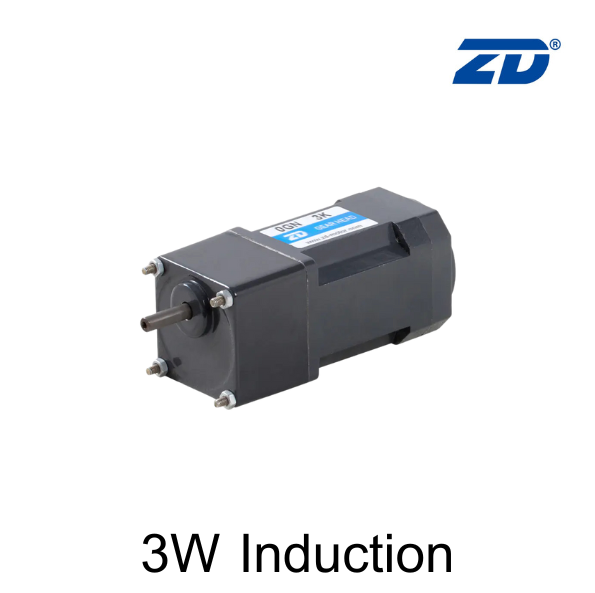

3W Induction AC Motor/Gear Motor

We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Product Description

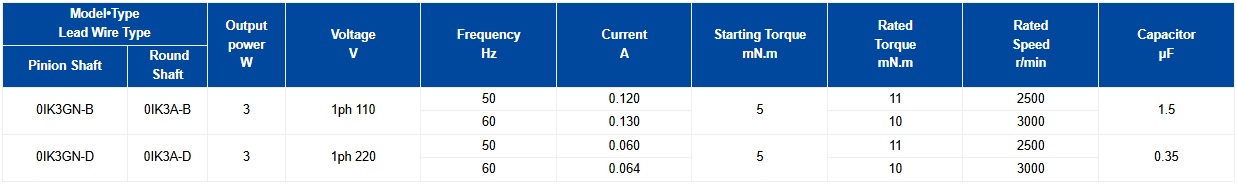

  Specs Continuous Rating

●When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.

  Тype

  Gear Motor-Torque Table & Allowable Torque Unit：Upside(N.m)/ Downside(kgf.cm)

●Gearhead are sold separately. Decimal gearheads are not available.
●Enter the gear ratio in the box（□） within the model name
●The speed is calculated by dividing the motor's synchronous speed（2P Type 50Hz ： 3000r/min ﹑60Hz ： 3600r/min） by the gear ratio. The actual speed is 2%~33% less than the displayed value, depending on the size of the load.

Product Description

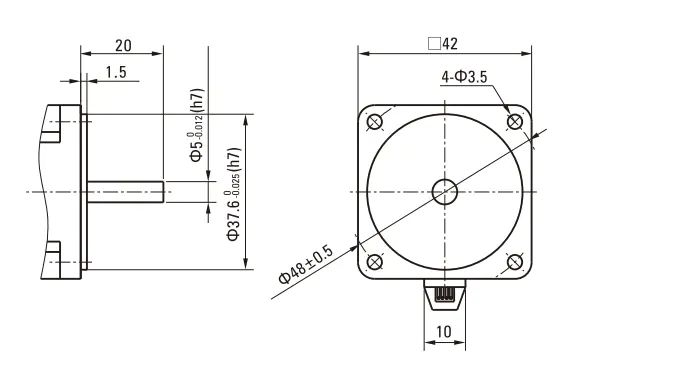

  Dimensions(Unit mm)

Mounting screws are included with gearhead.

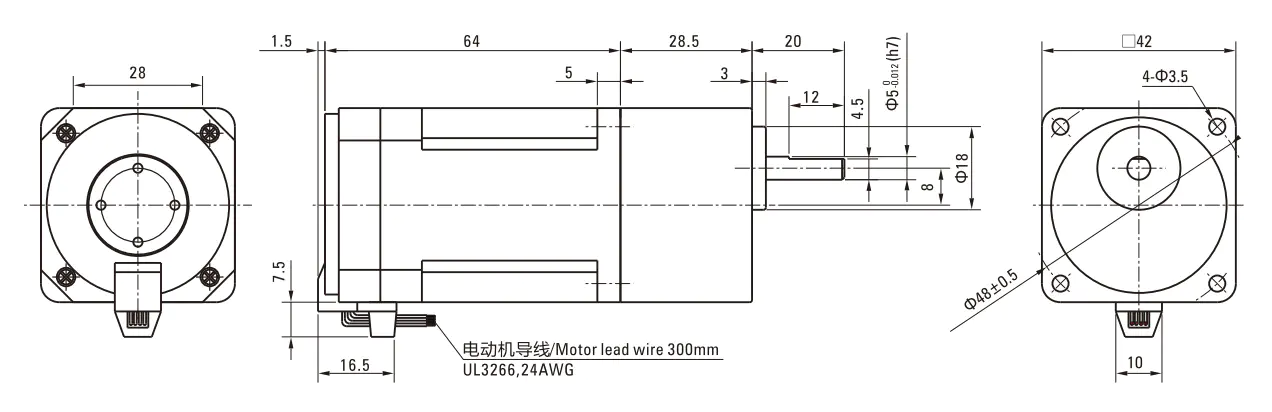

●Lead Wiring Type
Weight：Motor：0.3kg Gearhead：0.2kg

 ●Shaft Section Of Round Shaft Type
Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

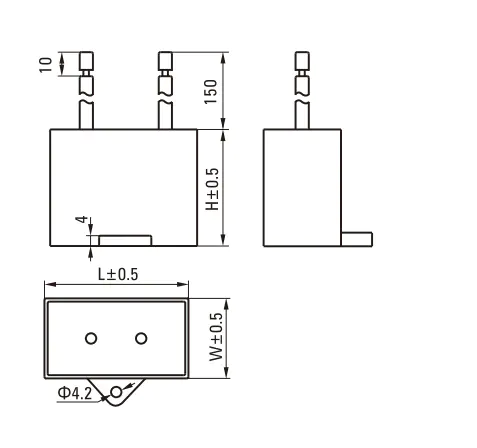

  Formal Dimension Of Capacitor

●Note: Conventional capacitor is a lead wire type. Inserted 187# is optional

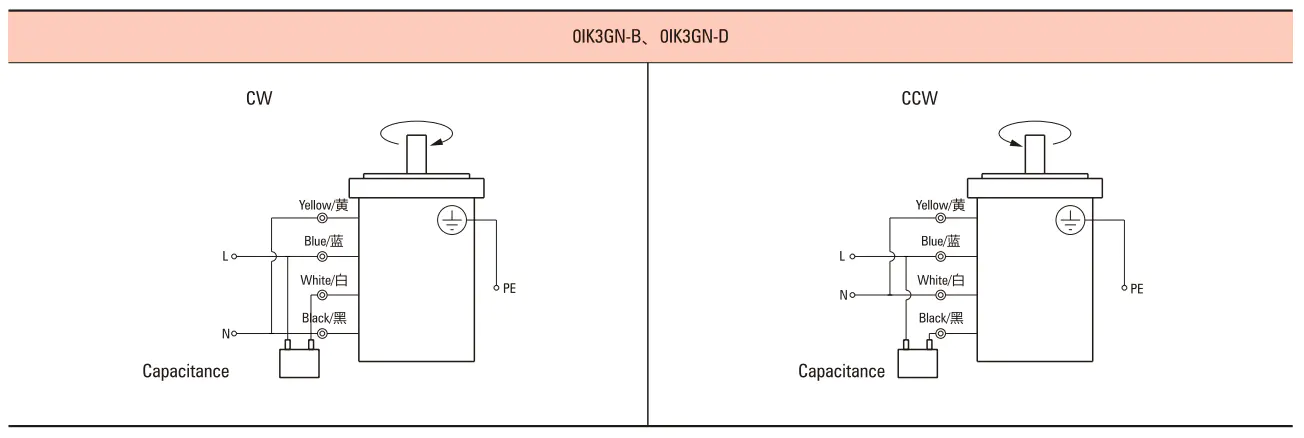

  Wiring Diagram

 ●The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction
●Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.

Note:
Change the direction of single-phase motor rotation only after bring the motor to a stop.

If an attempt is made to change the direction of rotation while the motor is rotating，motor may ignore reversing command or change its direction of rotation after some delay.
