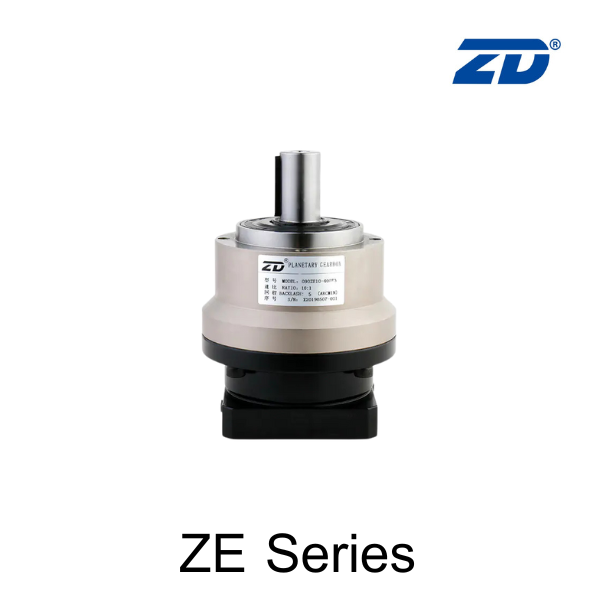

ZE Series Precision Helical Planetary Gearbox

We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

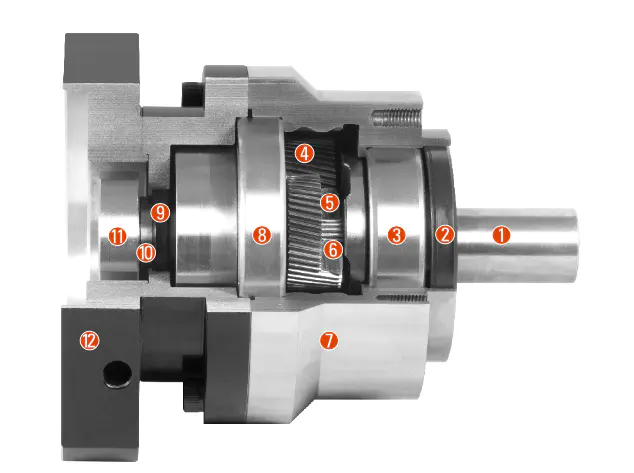

1.Output shaft
2.Oil seal
3.Output shaft front bearing
4.Planetary gear
5.Solar wheel
6.Full needle bearing
7.Front cover
8.Output shaft rear bearing
9.Oil seal
10.Coupling
11.Lock ring
12.Rear cover

Product Specifications

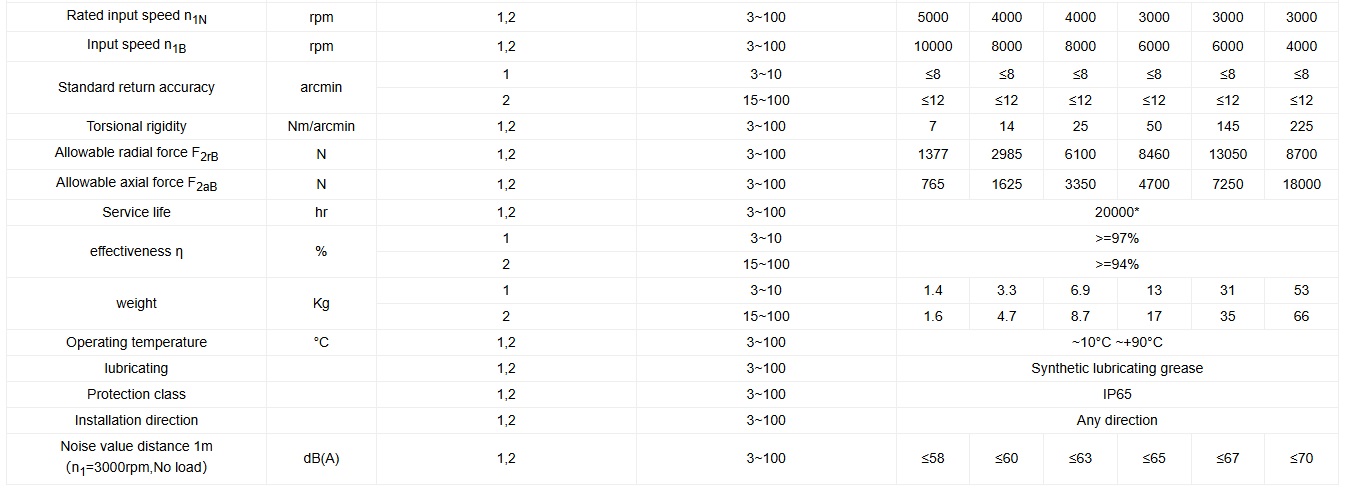

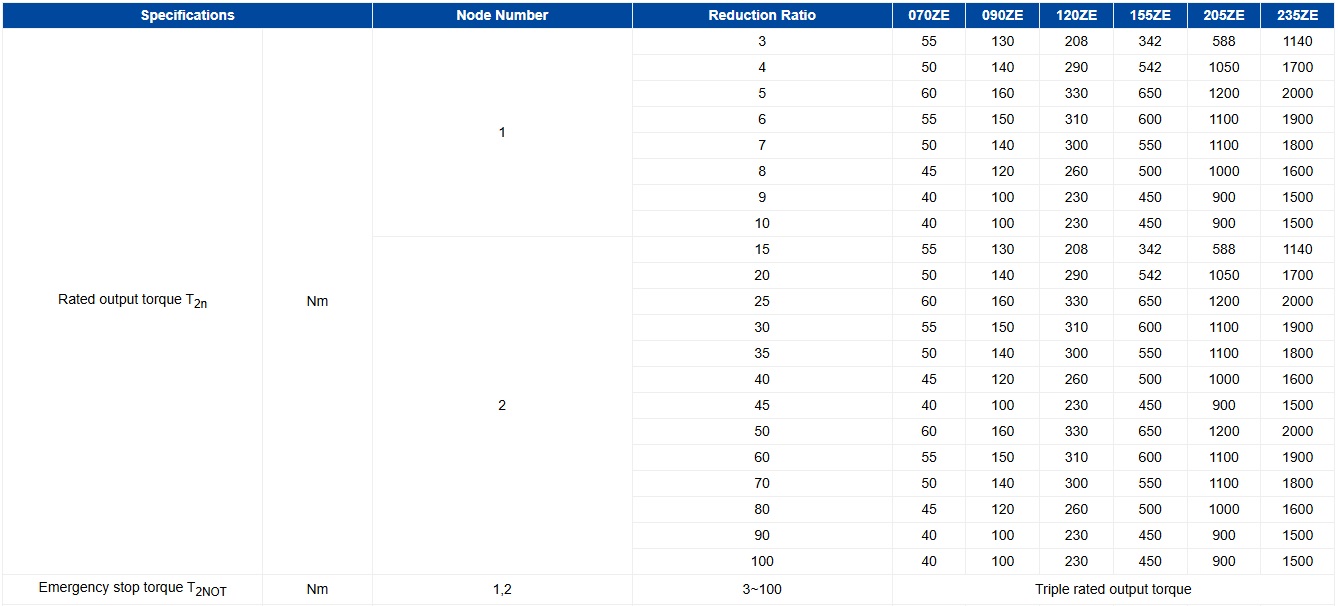

Reducer Performance Data

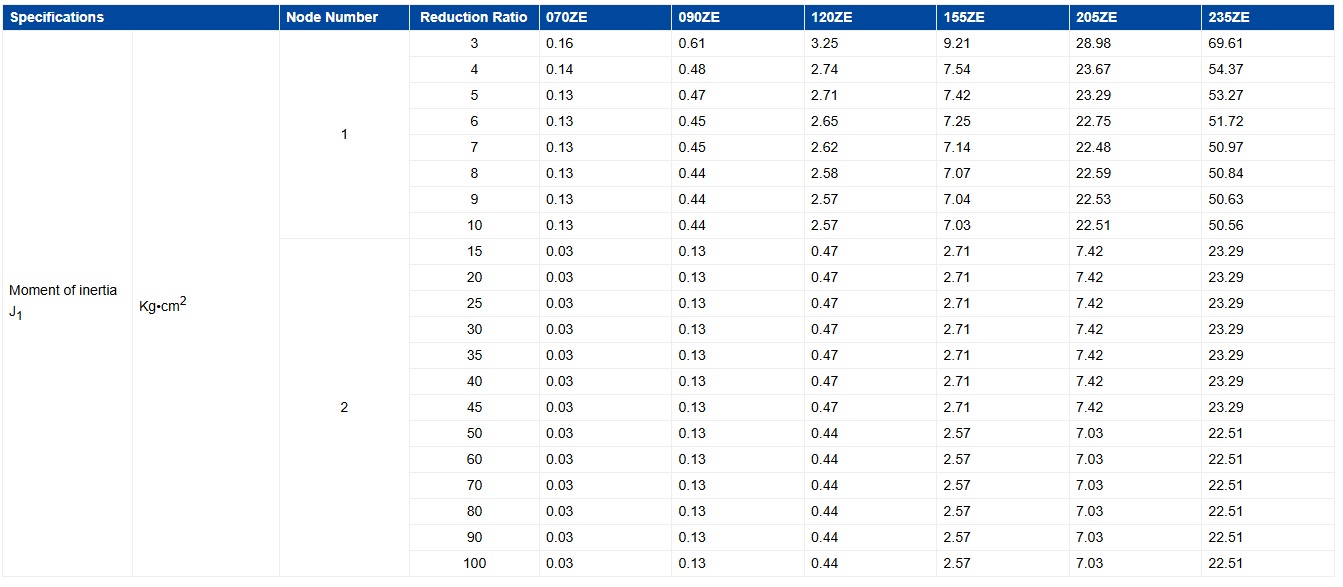

 Moment Of Inertia Of The Reducer

1.Reduction ratio( i=Nin/Nout )       2.Acceleration torqueT2B= 60% of T2NOT       3.When the output speed is 100гpm, it acts on the center position of the output shaft.

* Continuous operation, service life is 10000hrs

DIMENSIONS

SINGLE SEGMENT,REDUCTION RATIO i=3～10

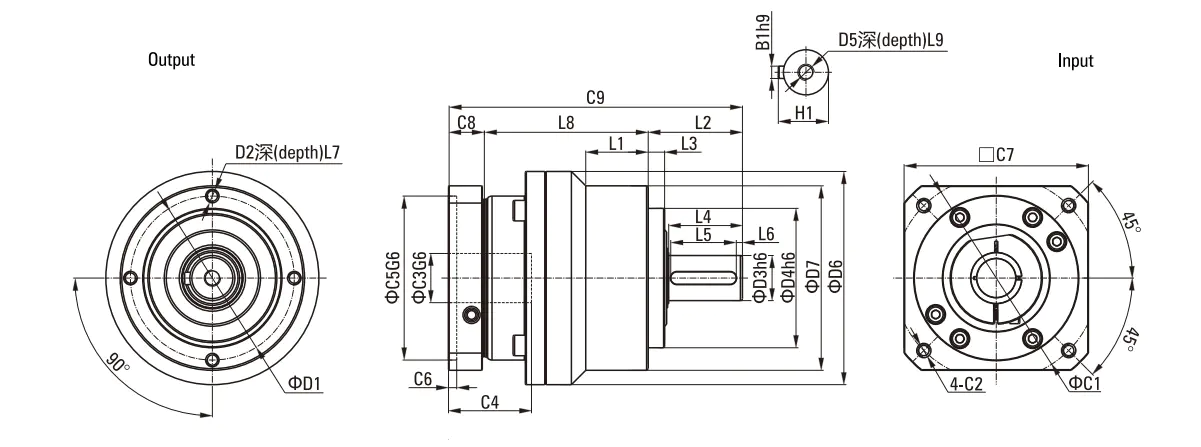

■ Dimensional Drawing

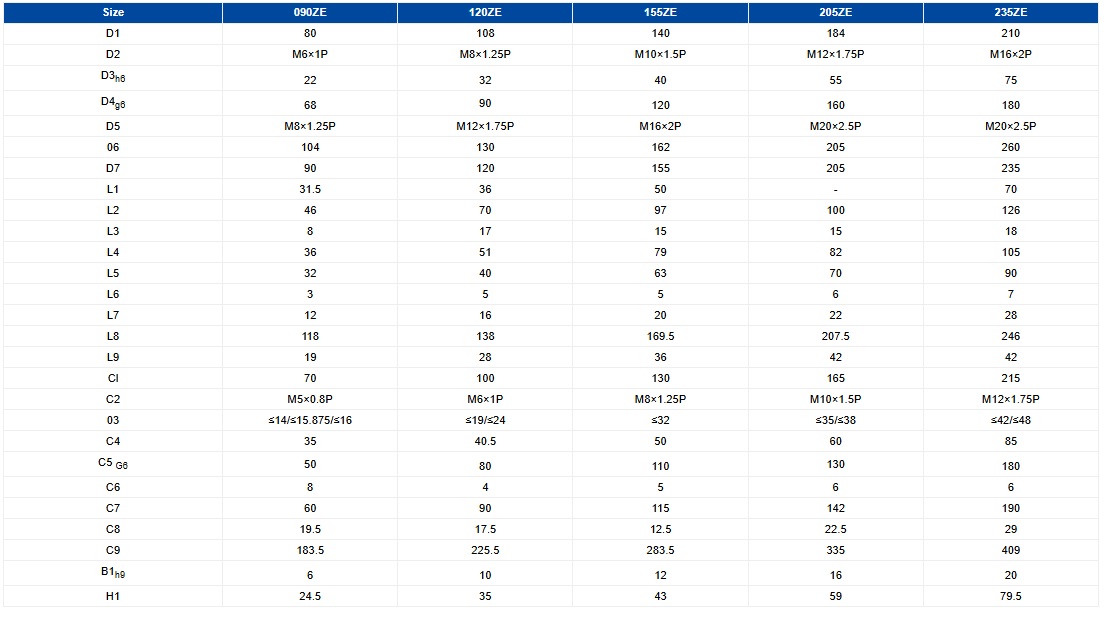

■ Dimensional Table

* 070ZE 5,10 reduction ratio is available with C3≤16.

DOUBLR,REDUCTION RATI0 i=15~100

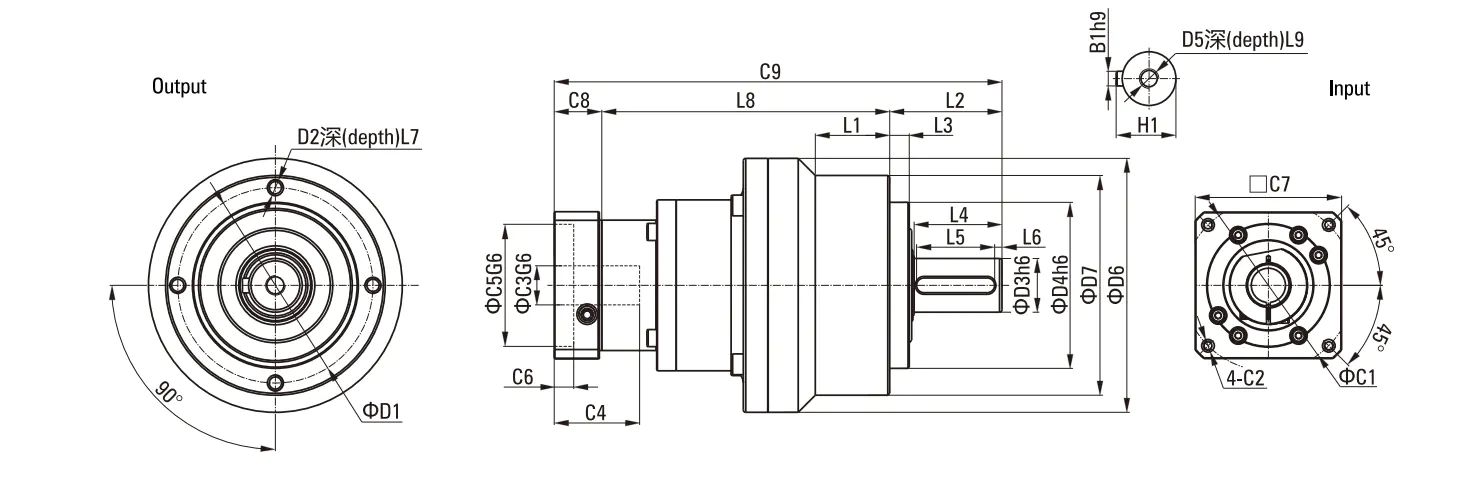

■ Dimensional Drawing

■ Dimensional Table
